Graco Ultra 695 XT ProContractor Series Electric Airless Sprayer Hi-Boy 19F714

$10,560.90
SKU: 19F714

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Ultra 695 XT ProContractor Series Electric Airless Sprayer Hi-Boy 19F714
$10,560.90

Description

Graco Ultra 695 XT ProContractor Series Electric Airless Sprayer Hi-Boy

The Ultra 695 XT ProContractor Series delivers an airless spray experience like no other. Made in the USA with a 2.1 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, and an Endurance Vortex MAXLIFE pump. The 695 XT ProContractor is guaranteed to last!


Xtreme Production & Reliability. XT ProContractor Series electric airless sprayers are built specifically for professional contractors looking to increase production on the industry's most silent spraying platform. Complete with numerous time saving features and the industry's longest life pumps, an XT ProContractor will keep you out of the shop, and on the job.

For pre-orders only, will be available for online purchase soon.





Compare Table

Click here to open table
Ultra 650 XT Ultra 695 XT Ultra 795 XT Ultra 1095 XT
MAXIMUM TIP SIZE 0.029" Max Tip 0.031" Max Tip 0.033" Max Tip INCREASED TIP SUPPORT 0.037" Max Tip
MAXIMUM PSI (BAR) 3,300 (227) 3,300 (227) 3,300 (227) 3,300 (227)
MAXIMUM GPM (LPM) 3,300 (227) 3,300 (227) 3,300 (227) 3,300 (227)
XTREME TORQUE MOTOR (HP) (1.9) (2.1) (2.3) (2.7)
WEIGHT LB (KG) 69 (31) Hi-Boy 93 (42) Standard 94 (43) Standard 112 (51) Standard
GUN SUPPORT:
1 GUNS
2 GUNS
3 GUNS
0.029"
0.019"
0.031"
0.023"
0.033"
0.025"
0.019"
0.037"
0.029"
0.023"
SERIES TYPE MIDSIZE STANDARD PROCONTRACTOR STANDARD PROCONTRACTOR STANDARD PROCONTRACTOR
MODEL
Cart Design – Part Number Lo-Boy – 20B327
Hi-Boy – 20B328
Hi-Boy – 19F712 Hi-Boy – 19F714 Hi-Boy – 19F715 Hi-Boy – 19F717 Hi-Boy – 19F720 Hi-Boy – 19F721
PUMP
NEW PISTON PUMP Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex
NEW VORTEX PISTON ROD Chromex Chromex MaxLife Chromex MaxLife Chromex MaxLife Extreme
SLEEVE Hardened SST Hardened SST MaxLife Hardened SST MaxLife Hardened SST MaxLife
NEW PROCONNECT
REPLACEMENT SYSTEM
FEATURES
NEW RAPID-RESPONSE
PRESSURE CONTROL
NEW SELECTABLE
PERFORMANCE MODES
NEW LED DISPLAY
NEW TURBOCLEAN
NEW WATCHDOG PUMP PROTECTION
EASY OUT FILTER (60 MESH)
NEW QUIKREEL HOSE REEL Optional Optional Optional
NEW SMARTDISPLAY XT Optional Optional Optional Optional
FLAT PROOF TIRES Optional Optional Optional
CRUSHPROOF INLET STRAINER Optional Optional Optional
CONTRACTOR PC GUN
SWITCHTIP RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517
HOSE 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
WEAR PARTS
REPLACEMENT PUMP 2002382 2001548 / 2001549* 2001549 2001573 / 2001574* 2001574 2001550 / 2001551* 2001551
REPAIR KIT 18B260 248212 / 17H838** 17H841** 248212 / 17H838** 17H841** 248213 / 17H839** 17H842**

Videos

Specifications

  • Maximum Tip Size: 0.031 inches
  • Maximum Flow: 3.5 l/min (0.92 GPM)
  • Maximum Pressure: 3300 PSI (227 bar)
  • Motor Power: 2.1 HP (1566 Watts)
  • Weight: 50 kg (110 lbs)
  • Voltage: 240V

Features

Xtreme Torque Motor Technology

  • 15X more torque than traditional motors
  • 8X more magnets provide unmatched power and performance
  • 90% lower running speeds extend motors life
  • 10X quieter

RapidResponse Control

  • Instantly responds to deliver the best finish quality
  • More performance across its full tip size range
  • Industry's largest operating pressure range (50-3,300 psi)

Selectable Performance Modes

  • Two selectable spray modes offer unique performance levels to boost efficiency on every job
  • Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
  • Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)

SmartDisplay XT

  • Compatible with Contractor PowerShot XT Gun
  • LED Digital Display visible in even the toughest spraying conditions

Endurance Vortex MAXLIFE Piston Pump with ProConnect

  • Endurance Vortex MAXLIFE Rod lasts 6X longer than the closest competitor
  • ProConnect Pump Removal for fast on-the-job service
  • 25% longer pump stroke for longer life before repacking

QuikReel Hose Management System

  • Easy hose management
  • Deploy and rewind up to 300 feet (90 meters) of hose in seconds
  • No twisting, kinking, and coiling
  • Use only the hose you need — the rest stays on the reel

TurboClean Cleaning System

  • Industry’s fastest pump cleaning system
  • Delivers 6X faster cleaning with 1/2 the water
  • Convenient location

BlueLink Job & Sprayer Management System

  • Streamline your business
  • Track every sprayer: Exact location & hourly productivity
  • Know job progress: On demand productivity facts and reporting from anywhere
  • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes

WatchDog Pump Protection

  • Prevents damage by shutting off pump when it's time to refill

Gun, Hose and Tip Included

  • Contractor PC Gun & RAC X LP 517 SwitchTip

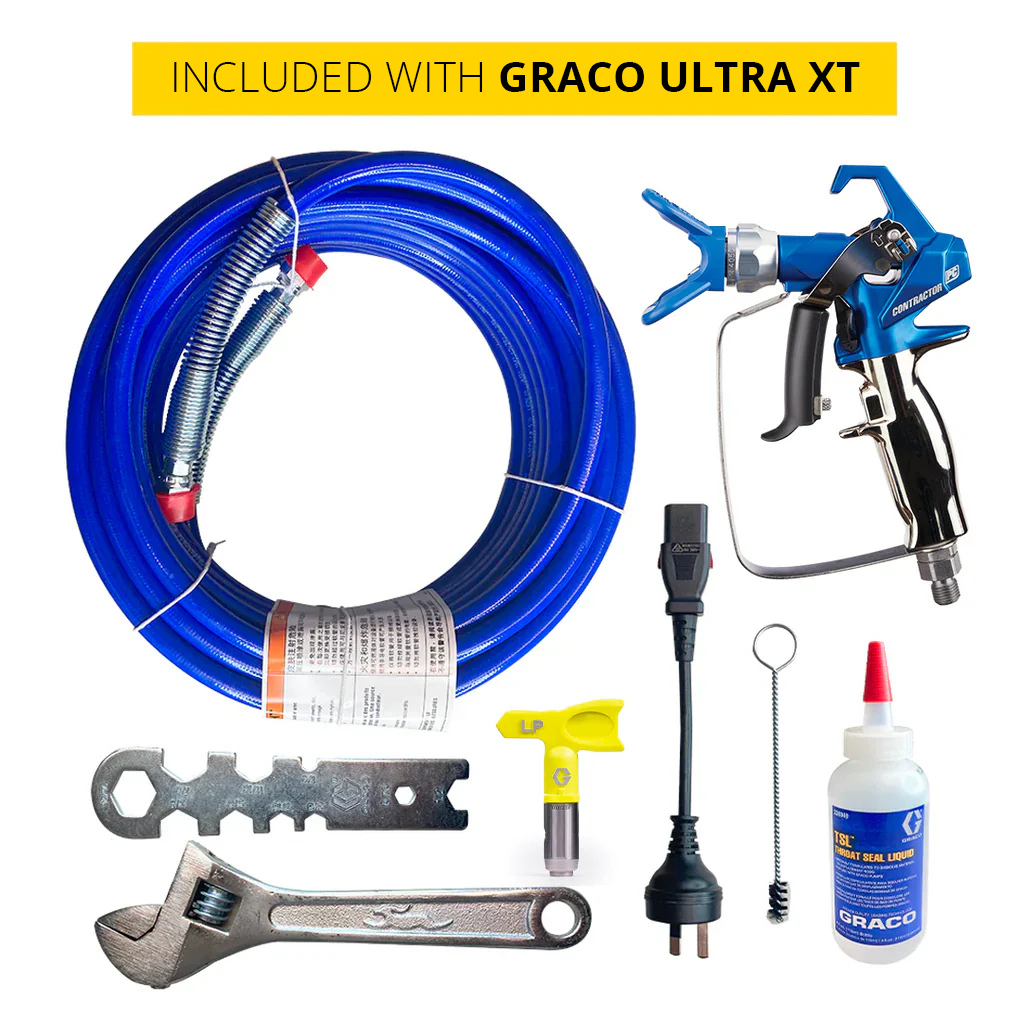

What's Included

Contractor PC Spray Gun

RAC X LP 517 SwitchTip

RAC X HandTite Tip Guard

BlueMax II Airless Hose (1/4 inch x 50 feet)

CrushProof Inlet Strainer

FlatProof Tires

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
55.88 cm
78.74 cm
63.50 cm

Weight

Courier

May require help to carry

Total Weight: 39.92 kg
