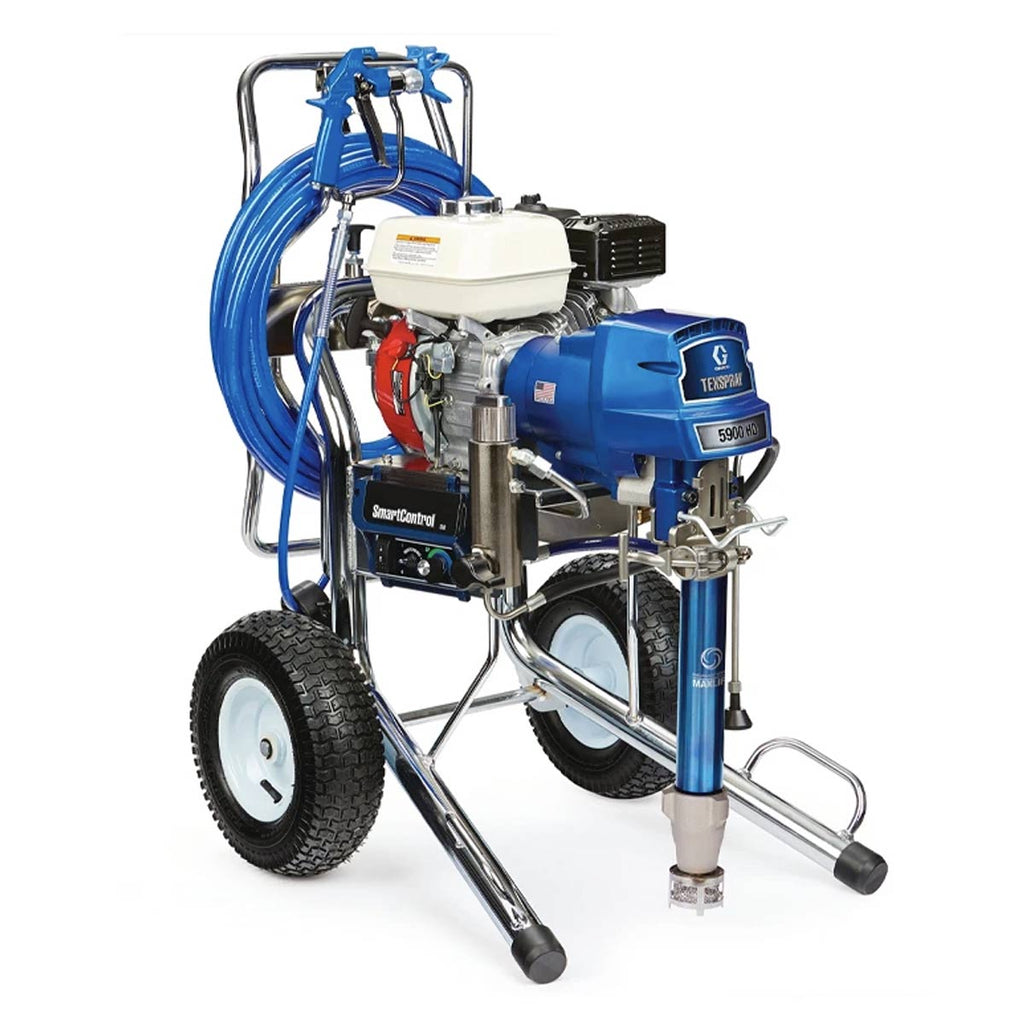

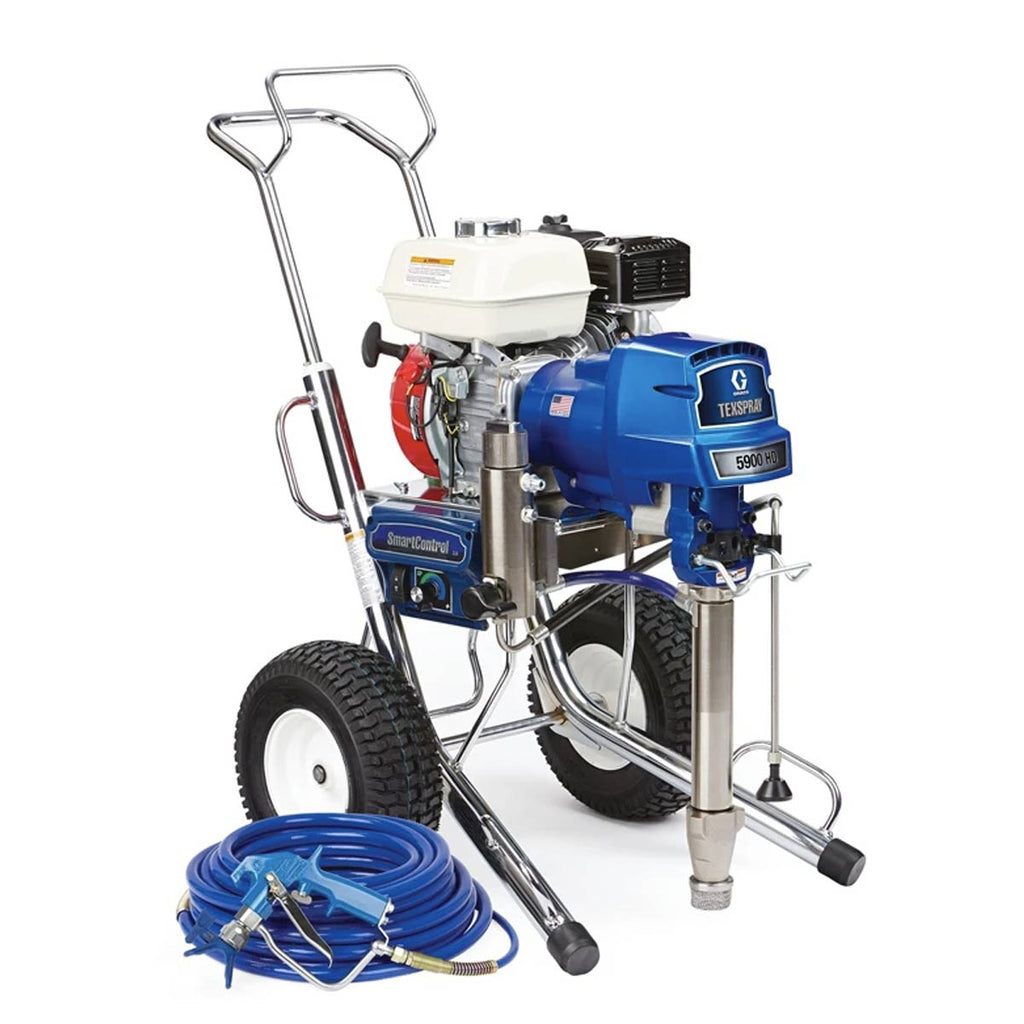

Graco TexSpray 5900 HD Standard Series Hi-Boy Petrol Airless Sprayer (17E839)

GRACO
$14,395.00
SKU: 17E839

Title

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco TexSpray 5900 HD Standard Series Hi-Boy Petrol Airless Sprayer (17E839)
$14,395.00

Description

Graco  TexSpray 5900 HD Petrol Airless Sprayer Range

The TexSpray 5900 HD is built with must-have features to save you time and money by delivering exceptional performance and versatility. Spray more square footage in a day and increase your productivity with all texture finishes as well as the wide range of primers and paint.

Everyday Reliability. TexSpray HD Standard Series airless texture sprayers deliver unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.


      Compare Table

      Click here to open table

      		MARK V STD MARK V STD MARK V IRONMAN TEXSPRAY 5900 HD STANDARD TEXSPRAY 7900 HD STANDARD TEXSPRAY 5900 HD PRO TEXSPRAY 7900 HD PRO TEXSPRAY 7900 HD IRONMAN
      Warranty 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years
      Part Numbers: 17E657 17E663 17E629 17E839 17E841 17E840 17E842 17E843
      Max. tip size Paint 0.035" Paint 0.035" Paint 0.035" 0.043" 0.047" 0.042" 0.048" 0.047"
      Max. flow - l/min (gpm) 5.1 (1.35) 5.1 (1.35) 5.1 (1.35) 6.0 (1.6) 8.3 (2.2) 6.0 (1.6) 6.0 (1.6) 8.3 (2.2)
      Max. pressure - bar (PSI) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300)
      Motor rating - kW - (HP) 2.1 (2.8) 2.1 (2.8) 2.1 (2.8) 6.5 HP Honda 6.5 HP Honda 6.5 HP Honda 6.5 HP Honda 6.5 HP Honda
      Weight - kg (lbs) 57kg 64kg 59kg 64kg 67kg 70kg 74kg 67kg
      SmartControlTM with ProGuardTM 4.0 4.0 4.0 3.0 3.0 3.0 3.0 3.0
      Hydraulic Pressure Gauge ■ ■ ■ ■ ■ ■ ■
      LED Display
      		■ ■

      		■ ■ ■
      FastFlush 2TM ■ ■ ■




      WatchdogTM
      		■ ■

      		■ ■ ■
      EnduranceTM Pump ■ ■ ■
      		■ ■ ■ ■
      ProConnectTM
      		■ ■ ■ ■ ■ ■ ■
      Piston Rod Chromex MaxLife w/Vortex MaxLife Extreme w/Vortex Chromex MaxLife MaxLife w/Vortex MaxLife w/Vortex MaxLife Extreme w/Vortex
      Sleeve Hardened SST MaxLife MaxLife


      		MaxLife
      MaxFlo 2 ■ ■ ■ ■ ■ ■ ■ ■
      Rock Catcher Std Crush proof Crush proof Standard Standard Crush proof Crush proof Crush proof
      TiltBackTM ■ ■ ■ ■ ■ ■ ■
      QuickReelTM
      		■


      		■ ■
      Flat-Proof Tires

      		■



      		■
      Tips RAC X 427 + 531 RAC X 427 + 531 RAC X 427 + 531 LTX 517 LTX 517 RAC X LTX 517 RAC X LTX 517 RAC X LTX 517
      Guard RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215
      Gun HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605
      Hose Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m BlueMaxTM II 1/4" x 15m - 240797 BlueMaxTM II 1/4" x 15m - 240797 Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m
      Whip hose Blue MaxTM II 1/4" x 0.9mm Blue MaxTM II 1/4" x 0.9m Blue MaxTM II 1/4" x 0.9m (BlueMaxTM II 1/4" X 0.9 M - 241735) (BlueMaxTM II 1/4" X 0.9 M - 241735) Blue MaxTM II 1/4" x 0.9m Blue MaxTM II 1/4" x 0.9m Blue MaxTM II 1/4" x 0.9m
      Tools ■ ■ ■ ■ ■ ■ ■ ■

      Specifications

      COMPATIBLE REPLACEMENT PUMP - 17H829

      CONVERTIBLE - Non-Convertible

      ENGINE BRAND - Honda

      ENGINE SIZE (HP) - 5.5

      ENGINE SIZE (KW) - 4.1

      FEATURE - S Endurance Chromex Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve

      FLUID INLET SIZE (IN) - 1-5/16

      FLUID INLET SIZE (MM) - 33.34

      FLUID INLET THREAD TYPE - UN-2A

      FLUID OUTLET SIZE (IN) - 3/8

      FLUID OUTLET SIZE (MM) - 9.525

      FLUID OUTLET THREAD TYPE - NPSM

      FRAME CONFIGURATION - Cart

      HOSE INLET DIAMETER (CM) - 0.9525

      HOSE INLET DIAMETER (IN) - 3/8

      HOSE INLET DIAMETER (MM) - 9.525

      INLET PAINT STRAINE - R8 Mesh Stainless Steel Screen

      MAXIMUM FLOW RATE (GPM) - 1.6

      MAXIMUM FLOW RATE (L/MIN) - 6.06

      MAXIMUM SOUND PRESSURE LEVEL (DB(A)). -96

      MAXIMUM TIP SIZE (IN) - 0.043

      MAXIMUM TIP SIZE GUN 1 (IN) - 0.043

      MAXIMUM WORKING PRESSURE (PSI). - 3300

      MAXIMUM WORKING PRESSURE (KPA) - 22800

      POWER RATING (HP) - 5.5

      POWER SOURCE - Gas

      POWER RATING (KW) - 4.10

      POWER RATING (W) - 4101

      MAXIMUM WORKING PRESSURE (MPA) - 22.8

      PRESSURE CONTROL TYPE - SmartControl 3.0

      OVERALL WIDTH (MM) - 620

      MODEL - GMAX II HD

      MAXIMUM WORKING PRESSURE (BAR) - 228

      Features

      • Endurance Chromex Piston Pump
        • The most reliable pump
        • Lasts 2X Longer than the next leading brand
        • Long life ceramic and stainless steel balls included for maximum versatility
        • Faster cleaning with the QuikAccess intake foot valve

      • MaxFlo 2 with Pack-Out Protection
        • Less pack-out, more productivity
        • Self-cleaning Vibra-Seal Technology eliminates material build-up
        • Continuous spraying with True Pack-Out Protection for more productivity
        • Optimized fluid passageways for the heaviest coatings

      • SmartControl 3.0
        • Consistent spray fan & pressure control
        • Ideal for low overspray applications with the lowest dead band at any pressure

      • Precision Advantage Drive
        • The longest lasting drive
        • Improved jobsite conditions with extremely quiet operation
        • Lifetime Warranty

      • Honda® GX Engine
        • Reliable, Powerful & Easy-to-Start
        • Oil Alert shuts down engine to prevent damage if oil level drops too low

      • Easy Out Pump Filter
        • Easy Pump Maintenance & Less Clogging
        • Inside-out design means less mess with fewer tip clogs

      • Rugged, Durable Cart Design
        • Rugged and easy-to-move
        • Withstands tough job-site conditions while absorbing impacts and vibrations
        • Easy hose storage with integrated hose wrap and telescoping handle
        • Easy loading with built-in lift handles

      • Heavy-Duty Prime Valve
        • Maintenance-free high-pressure dumping capability

      What's Included

      • Heavy-Duty Blue Texture Gun
      • RAC X LTX 427 Spray Tip
      • RAC X LTX 531 Spray Tip
      • RAC X Guard
      • 3/8 in x 50 ft BlueMax II Airless Hose
      • 1/4 in x 3 ft BlueMax II Airless Whip Hose

      Reviews

      Dimensions

      Width
      Width
      Height
      Height
      Length
      Length
      product
      62.00 cm
      98.60 cm
      83.10 cm

      Weight

      Courier

      May require help to carry

      Total Weight: 65.00 kg
