Graco Magnum ProX19 Electric Airless Paint Sprayer Hi Boy with Value Pack

$1,520.00

Description

Special Value Pack - PaintAccess

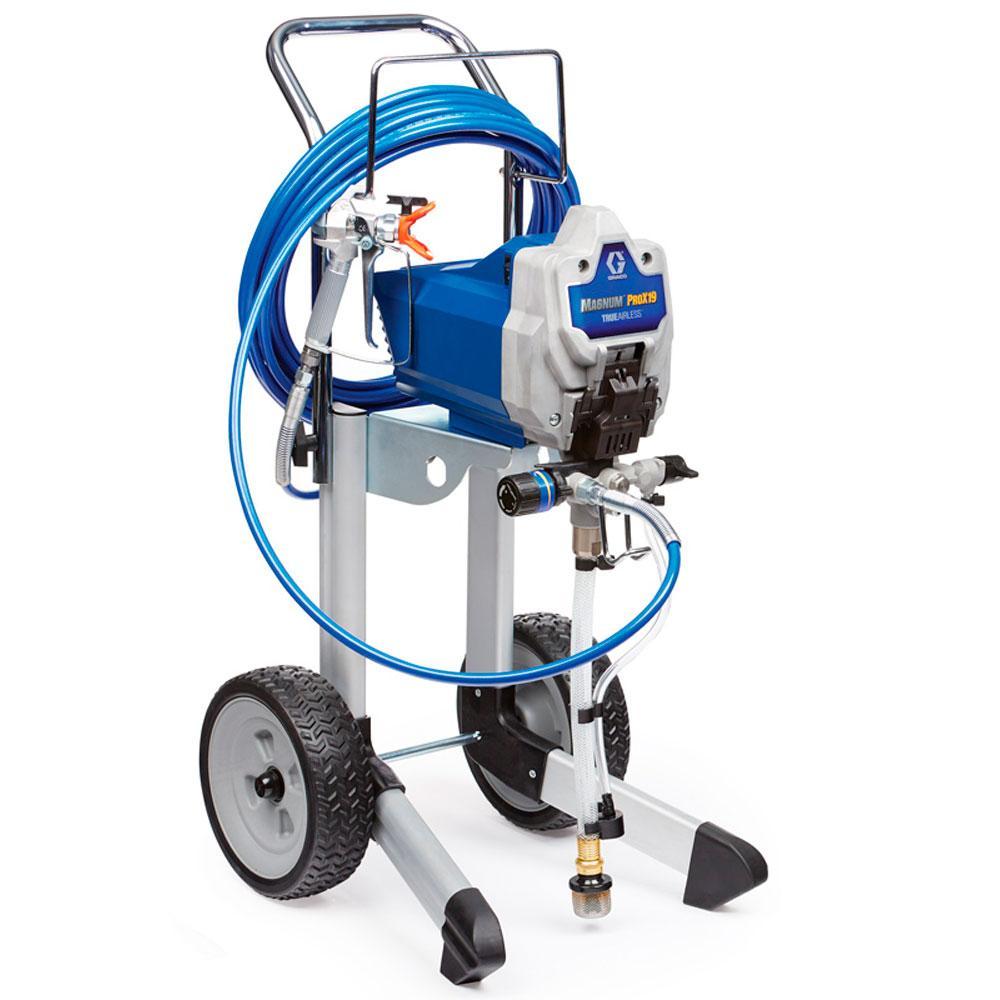

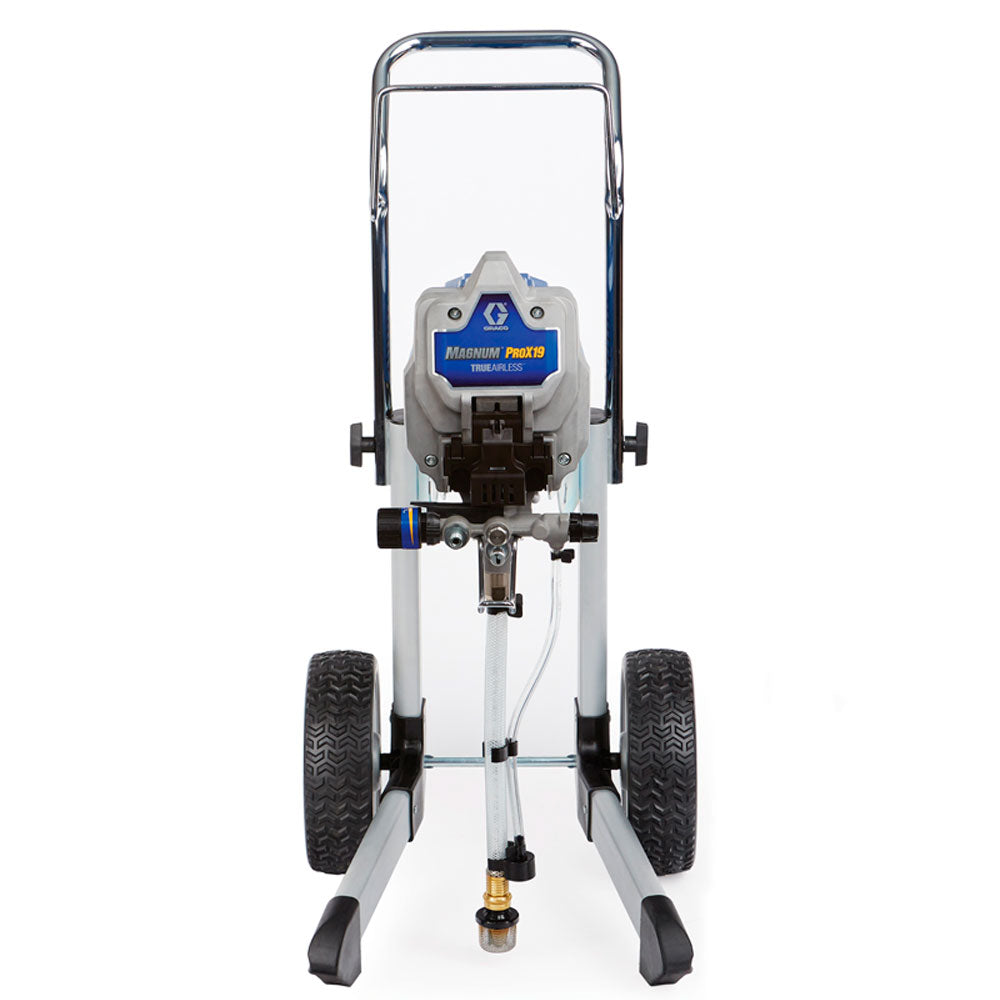

Graco Magnum ProX19 Hi-Boy Electric Airless Sprayer

The Graco Magnum ProX19 is a robust airless paint sprayer, ideal for professionals and serious DIY painters tackling large projects. Whether you're a property maintenance pro or subcontractor, the ProX19 is designed to handle heavy-duty tasks with ease.

Powerful ProXChange Pump for Frequent Use

Property maintenance pros or subcontractors turn projects around smarter and faster with the ProX19.
Tackle all interior and exterior projects, rental property and large homes.
The ProX19 supports a larger tip size allowing you to spray thicker material.

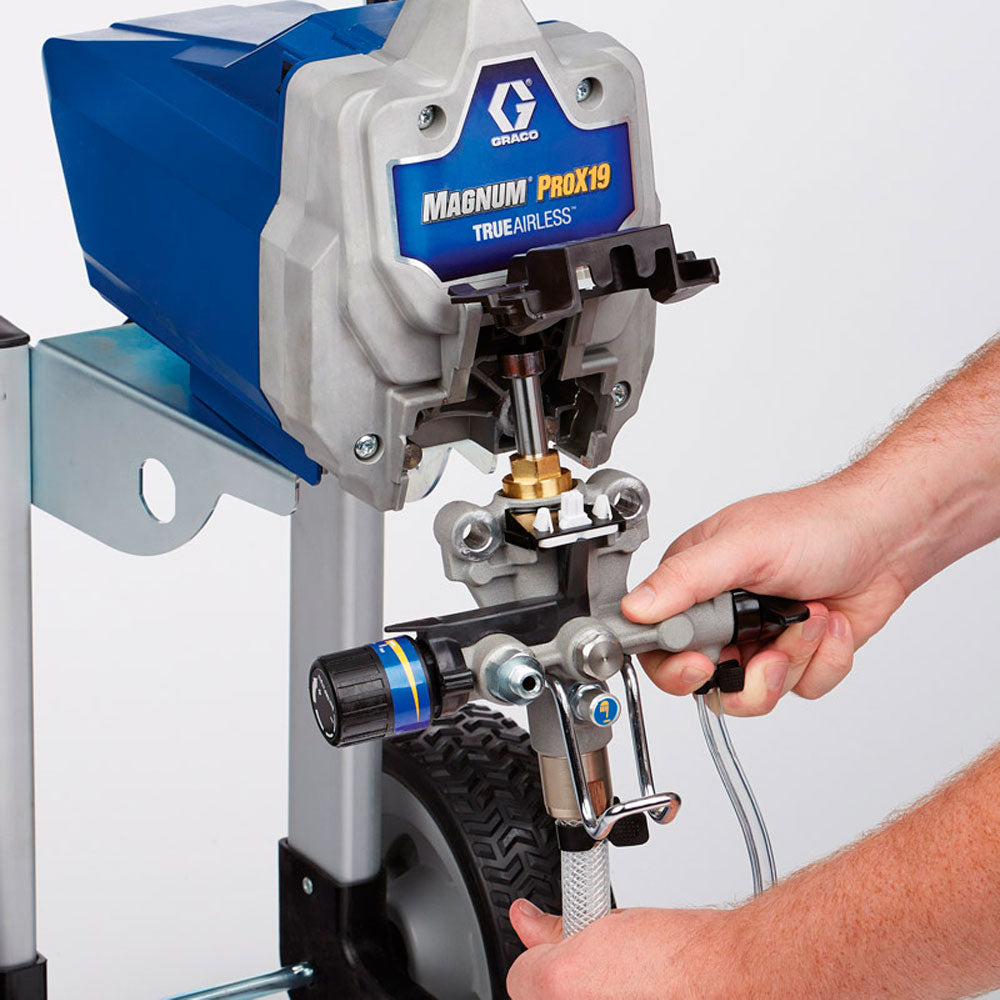

The ProXChange pump replacement system allows you to replace the pump on the job with no tools, eliminating downtime and keeping you spraying while extending the life of the sprayer.
You can use longer hose lengths to prevent moving your sprayer and keeping you more productive. (please buy optional hoses here)

Recommended occasional use; up to 2273 litres per year

All Magnum Range Owners Manual

Data Sheet Magnum ProX19

Magnum Quick Start Guide

Compare Table

Click here to open table


	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19
Warranty	1 year	1 year	1 year	1 year	1 year	1 year	1 year	1 year
Part Numbers:	26D521	26D522	26D528	16W119	16W120	16W121	17H203	17H210
Recommended Annual Usage(Litres per year)*	95 litres	95 litres	95 litres	190 litres	475 litres	475 litres	1135 litres	1895 litres
Maximum Spray Tip Size	.015	.015	.015	.015	.015	.017	.017	.019
Max. pressure - bar (PSI)	103(1500)	103(1500)	103(1500)	193(2800)	207(3000)	207(3000)	207(3000)	207(3000)
Performance Rating (lpm=Litres per minute)	0.76	0.76	0.76	0.91	1.02	1.17	1.29	1.44
Maximum Hose Length (m)	N/A	N/A	N/A	15	23	30	46	46
Motor	AC	AC	AC	0.375 hp Universal	0.5 hp Universal	0.625 hp Universal	0.750 hp DC	0.875 hp DC
Sprayer Weight (kg)	2.18	3.34	3.04	4.5	5.9	10.4	12.2	17.2
Piston Pump	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Hardened Stainless Steel	Hardened Stainless Steel	ProX Power Piston Pump	ProX Power Piston Pump
Spray Gun	N/A	N/A	N/A	Metal SG2	Metal SG2	Metal SG2	Metal SG3	Metal SG3
Spray Tip	10 & 30 cm	10 & 30 cm	10 & 30 cm	515	515	515	515	515
Paint Hose	N/A	N/A	N/A	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 15 m	6.4 mm x 15 m
Pump Armor	No	No	No	Yes	Yes	Yes	Yes	Yes
Quick Start Guide	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Pulls directly from 1 to 15 Litre container				■	■	■	■	■
Fastest way to complete small painting projects	■	■	■
Variable Pressure Control			■	■	■	■	■	■
PushPrimeTM – Helps reduce priming problems due to debris/poor cleaning					■	■	■	■
Filter – Filter debris in paint to reduce Spray Tip plugs	■	■	■	■	■	■	■	■
Pump Filter – Extra filtration to improve finish							■	■
Can spray turp and white spirit based materials							■	■
On-the-job Pump Repair							■	■
Power Flush – Connect to garden hose for fast clean-up				■	■	■	■	■
	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19


	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19
Warranty	1 year	1 year	1 year	1 year	1 year	1 year	1 year	1 year
Part Numbers:	26D521	26D522	26D528	16W119	16W120	16W121	17H203	17H210
Recommended Annual Usage(Litres per year)*	95 litres	95 litres	95 litres	190 litres	475 litres	475 litres	1135 litres	1895 litres
Maximum Spray Tip Size	.015	.015	.015	.015	.015	.017	.017	.019
Max. pressure - bar (PSI)	103(1500)	103(1500)	103(1500)	193(2800)	207(3000)	207(3000)	207(3000)	207(3000)
Performance Rating (lpm=Litres per minute)	0.76	0.76	0.76	0.91	1.02	1.17	1.29	1.44
Maximum Hose Length (m)	N/A	N/A	N/A	15	23	30	46	46
Motor	AC	AC	AC	0.375 hp Universal	0.5 hp Universal	0.625 hp Universal	0.750 hp DC	0.875 hp DC
Sprayer Weight (kg)	2.18	3.34	3.04	4.5	5.9	10.4	12.2	17.2
Piston Pump	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Hardened Stainless Steel	Hardened Stainless Steel	ProX Power Piston Pump	ProX Power Piston Pump
Spray Gun	N/A	N/A	N/A	Metal SG2	Metal SG2	Metal SG2	Metal SG3	Metal SG3
Spray Tip	10 & 30 cm	10 & 30 cm	10 & 30 cm	515	515	515	515	515
Paint Hose	N/A	N/A	N/A	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 15 m	6.4 mm x 15 m
Pump Armor	No	No	No	Yes	Yes	Yes	Yes	Yes
Quick Start Guide	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Pulls directly from 1 to 15 Litre container				■	■	■	■	■
Fastest way to complete small painting projects	■	■	■
Variable Pressure Control			■	■	■	■	■	■
PushPrimeTM – Helps reduce priming problems due to debris/poor cleaning					■	■	■	■
Filter – Filter debris in paint to reduce Spray Tip plugs	■	■	■	■	■	■	■	■
Pump Filter – Extra filtration to improve finish							■	■
Can spray turp and white spirit based materials							■	■
On-the-job Pump Repair							■	■
Power Flush – Connect to garden hose for fast clean-up				■	■	■	■	■
	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19

Videos

Specifications

Model Number	17H210
Recommended Usage*	~2273 l/yr
Maximum Tip Size	.019 in
Maximum Pressure	3000 psi
Performance Rating	1.7 l/min
Maximum Hose Length	45m
Motor	7/8 hp DC
Height	94.5cm
Length	50.8cm
Width	43.7cm
Weight	17kg

Features

ProX Stainless Steel Piston Pump - For greater reliability and long life

ProXChange Pump System - Eliminates downtime with quick, no-tools pump replacement on-the-job

DC Motor - Supports longer extension cords and up to 150 feet of airless hose

PushPrime - Fast and reliable start-up every time

SG3 Metal Spray Gun - Premium spray gun with hose swivel making it easy to manage longer hose lengths

Reverse-A-Clean Spray Tip - Quickly clears tip clogs

Convenient Cart - Move paint and sprayer around job site

Adjustable Pressure - Easy control of paint flow

InstaClean Pump Filter - Added pump filtration reduces tip clogs from debris in the paint

Power Flush - Connects to garden hose for fast and easy cleanup

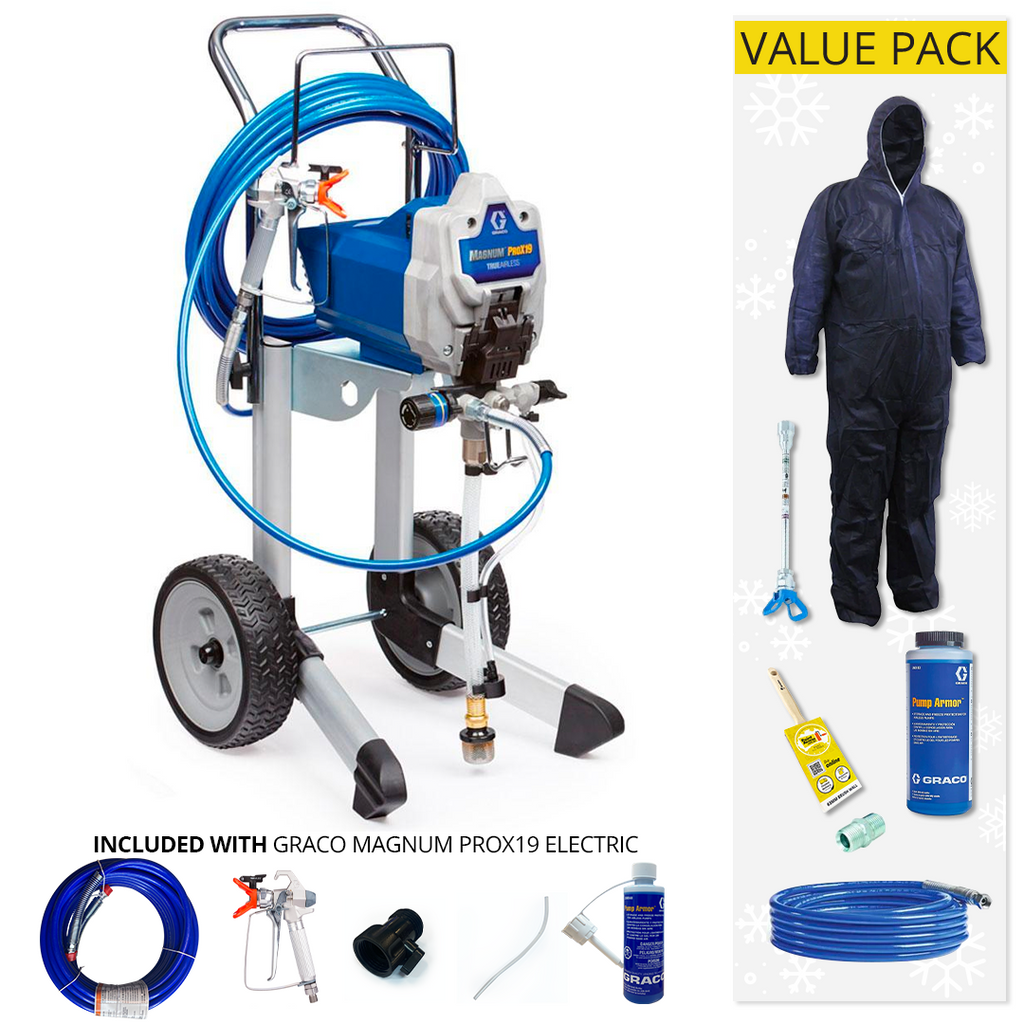

What's Included

Metal SG3 Spray Gun

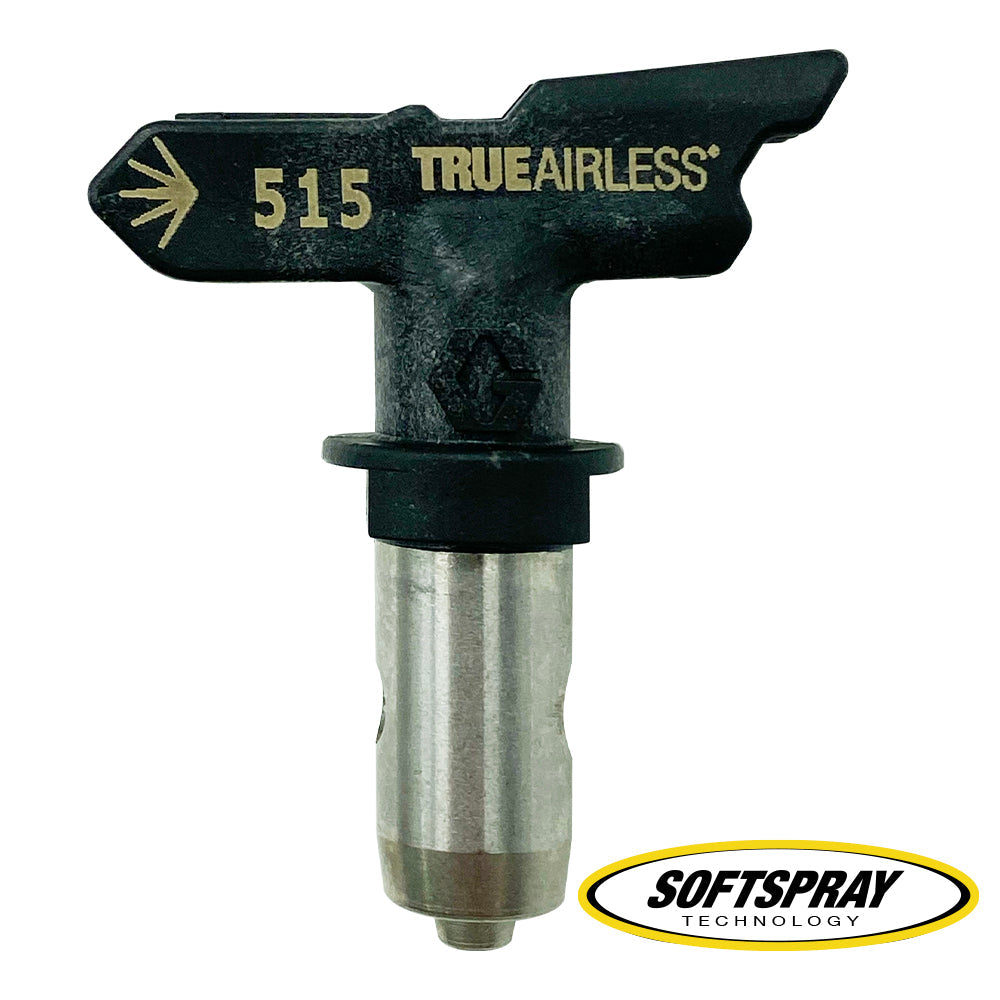

515 RAC IV Spray Tip

15m of hose

Pump Armour

Quick Start Guide

What's Included

Bonus includes:

• Uni-Pro Smooth Coat Synthetic Sash Cutter Paint Brush 63mm - SKU: 70563

• Blue Polypropylene Coveralls - SKU: CPB615-M1

• Pump Armor 1L (Single) - SKU: 243103

• 25cm Tip Extension w/ RAC X Guard (10") - SKU: 287019

• 7.5m Airless Hose (1/4") 6.4mm 3300 PSI - SKU: 240793

• Hose Fitting, 1/4 in x 1/4 in - SKU: 156971

Reviews

FAQ

Can you spray unthinned paint with the ProX19?

Yes, the ProX19's stainless steel piston pump allows you to spray unthinned paint at high pressure, saving time and ensuring a consistent finish.

What maintenance is required for the ProX19?

Regular cleaning is crucial. After each use, clean the pump, hose, and spray tip thoroughly, and store the sprayer with Pump Armor to prevent clogs and ensure reliable performance.

What types of projects is the ProX19 suitable for?

The ProX19 is ideal for both large and small projects, including interior and exterior painting, such as walls, ceilings, decks, and fences.

How long is the hose, and can it be extended?

The ProX19 comes with a 50-foot airless hose, which is sufficient for most projects. Extensions are available if you need additional reach without moving the sprayer frequently.

How do you prevent tip clogs with the ProX19?

Use the InstaClean pump filter to reduce debris, strain your paint before use, and reverse the spray tip to clear clogs quickly if they occur.
