Graco GX 21 Airless Paint Sprayer + Value Pack

Graco GX 21 Airless Paint Sprayer + Value Pack

GRACO

Save 1%

$1,890.00

SKU: 17H219-B6

Title

Quantity

Out of stock

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Graco GX 21 Airless Paint Sprayer + Value Pack

$1,890.00

Description

Special Value Pack - PaintAccess

The GX 21 is the fast, portable and affordable solution for small finishing jobs every finishing contractor faces. Graco's proven piston pump and RAC X SwitchTip quickly lay down a smooth finish. The ProXChange Pump provides fast on-the-job pump replacement – no tools required.

For portable airless spraying of architectural paints and coatings.

Compare Table

Click here to open table


	GX 21	190 PC Express	390 PC	395 PC PRO
Warranty	1 year	1 year	1 year	1 year
Part Numbers:	17H219	Stand 17C384	Stand 17C386 Lo-Boy 17C387 Hi-Boy 17C388	Stand 17E881
Max. Tip Size	0.021"	0.021"	0.021"	0.023"
Max. flow - I/min (gpm)	1.8(0.47)	1.8(0.47)	1.8(0.47)	2.0(0.52)
Max. pressure - bar (PSI)	207 (3000)	207 (3000)	227 (3300)	227 (3300)
Weight - Kg(Ibs)	13.2Kg	14Kg	Stand 17C386 - 14Kg Lo-Boy 17C387 - 20Kg Hi-Boy 17C388 - 24Kg	19Kg
Motor Power (hp)	0.87 DC	0.62 DC	0.62 DC	0.87 TEFC DC
Frame	Direct Immersion
Hopper	Suction Tube
Ball Knocker - PushPrime Button	■
Hydraulic Pressure Gauge	■			■
ProXChange Pump System	■
Pump	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston
ProConnect		■	■	■
Control		Electronic	Electronic	SmartControl 1.0
Tips	517	RAC X LTX 515	RAC X LTX 517	RAC X LTX 517 LP 315
Guard	RAC X - 246215	RAC X - 246215
Gun filter (mesh)	Easy Out 60 - 288749
Gun	SG3	SG3	Contractor PC	Contractor PC
Pump filter (mesh)	40 - 288747
Hose	1/4" x 15m - 247340	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)
	GX 21	190 PC Express	390 PC	395 PC PRO


	GX 21	190 PC Express	390 PC	395 PC PRO
Warranty	1 year	1 year	1 year	1 year
Part Numbers:	17H219	Stand 17C384	Stand 17C386 Lo-Boy 17C387 Hi-Boy 17C388	Stand 17E881
Max. Tip Size	0.021"	0.021"	0.021"	0.023"
Max. flow - I/min (gpm)	1.8(0.47)	1.8(0.47)	1.8(0.47)	2.0(0.52)
Max. pressure - bar (PSI)	207 (3000)	207 (3000)	227 (3300)	227 (3300)
Weight - Kg(Ibs)	13.2Kg	14Kg	Stand 17C386 - 14Kg Lo-Boy 17C387 - 20Kg Hi-Boy 17C388 - 24Kg	19Kg
Motor Power (hp)	0.87 DC	0.62 DC	0.62 DC	0.87 TEFC DC
Frame	Direct Immersion
Hopper	Suction Tube
Ball Knocker - PushPrime Button	■
Hydraulic Pressure Gauge	■			■
ProXChange Pump System	■
Pump	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston
ProConnect		■	■	■
Control		Electronic	Electronic	SmartControl 1.0
Tips	517	RAC X LTX 515	RAC X LTX 517	RAC X LTX 517 LP 315
Guard	RAC X - 246215	RAC X - 246215
Gun filter (mesh)	Easy Out 60 - 288749
Gun	SG3	SG3	Contractor PC	Contractor PC
Pump filter (mesh)	40 - 288747
Hose	1/4" x 15m - 247340	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)
	GX 21	190 PC Express	390 PC	395 PC PRO

Specifications

FLUID OUTLET SIZE (IN) - 1/4

FLUID OUTLET SIZE (MM) - 6.35

FLUID OUTLET THREAD TYPE - NPSM

FRAME CONFIGURATION - DI Stand

MAXIMUM FLOW RATE (GPM) - 0.47

MAXIMUM FLOW RATE (L/MIN) - 1.8

MAXIMUM TIP SIZE (IN) - 0.021

MAXIMUM WORKING PRESSURE (PSI) - 3000

MAXIMUM WORKING PRESSURE (KPA) - 20700

MAXIMUM WORKING PRESSURE (MPA) - 20.7

OVERALL WIDTH (MM) - 343

MODEL - GX

MAXIMUM WORKING PRESSURE (BAR) - 207

Features

Extremely Portable

Lighter than any competitive system

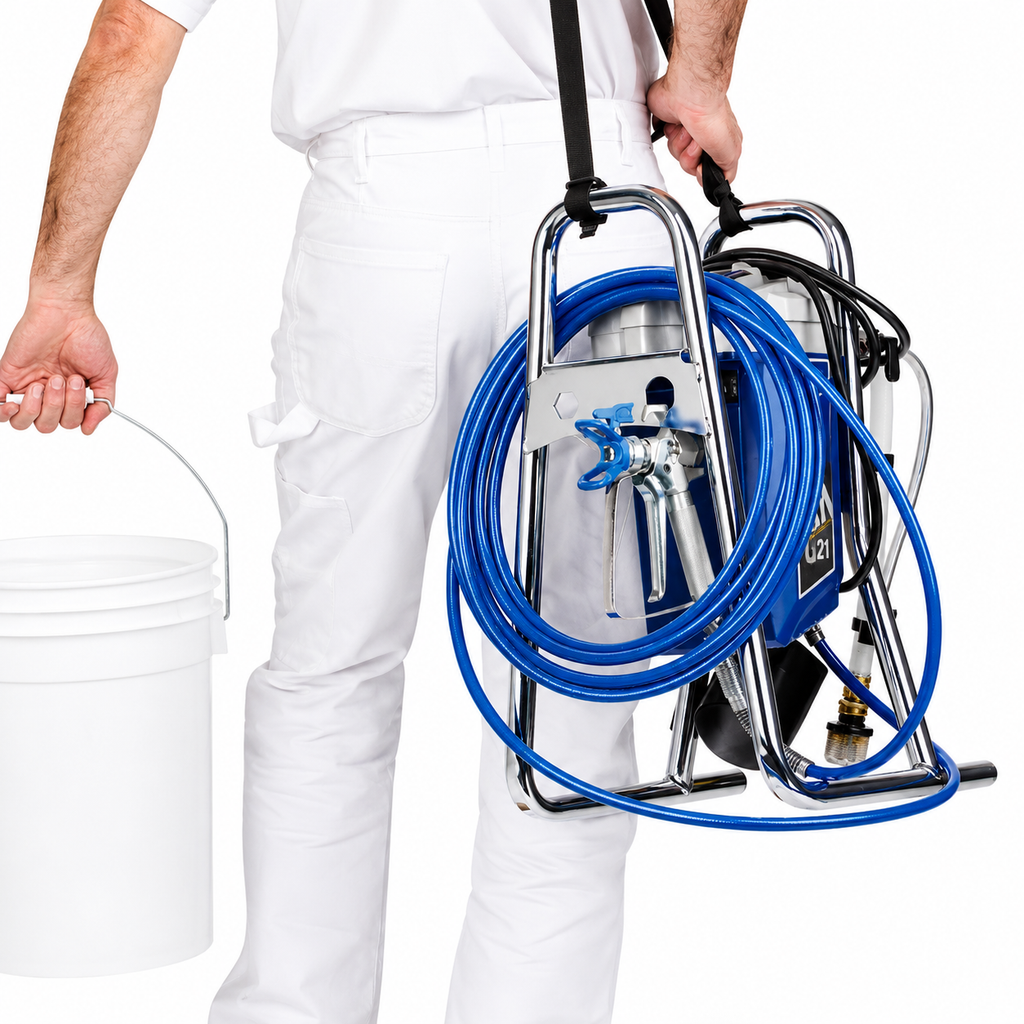

Easy Carry Handle makes transportation easy

Lid prevents splashes and spills while carrying

5.7 Litre Hopper

Ideal for spraying small amounts of material

Smooth inside surface cleans up fast

Lid included for spill-proof portability

Hopper easily attaches to sprayer without tools for easy cleaning

ProX Power-Piston Pump featuring ProXChange

Small deadband pressure enures the finest finish possible

Exceptional durability and long life piston pumps

Exclusive lifetime lubricated wiper pad for maintenance free operation

Modular pump components for easy maintenance

Fast and easy on-the-job pump replacement - no tools needed

Eliminate labour costs and down time expenses

Contractor Ftx Spray Gun

Form fitted handle provides maximum control and comfort

100-mesh gun filter included to minimize tip clogs and protect finish

EasyGlide swivel provides maximum flexibility for effortless hose management

Precision-Cut RAC X FF LP SwitchTip

Sprays at lower pressures with less overspray and up to 2X life

Finer atomisation and softer edges for easier overlapping with pre-orifice design

Allows for fast application of materials

Delivers a softer, more controlled spray fan

Ability to quickly clear tip clogs

Includes solvent seal for extremely hot solvents

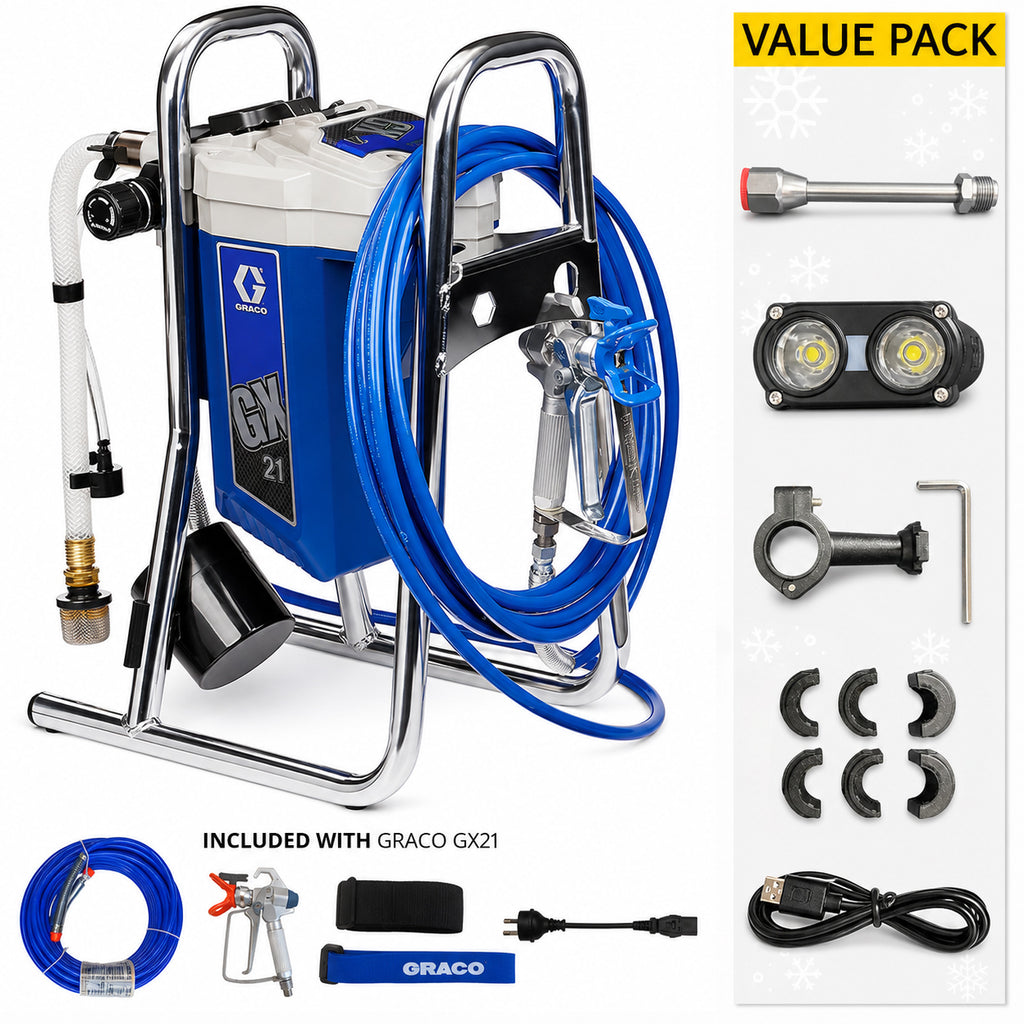

What's Included

Bonus includes:

• Maxisafe MaxiGuard Half Mask Silicone Painters Kit - SKU: R7500PK-M
• Blue Polypropylene Coveralls -SKU: CPB615-M
• Tipsaver Spray Equipment Cleaner/Organizer - SKU: 22TS50
• Pump Armor 1L (Single) -SKU: 243103
• Graco Airless Fine Finish RACX FFLP SwitchTip Green 312 -SKU: FFLP312
• Uni-Pro Smooth Coat Synthetic Sash Cutter Paint Brush 63mm - SKU: 70563
