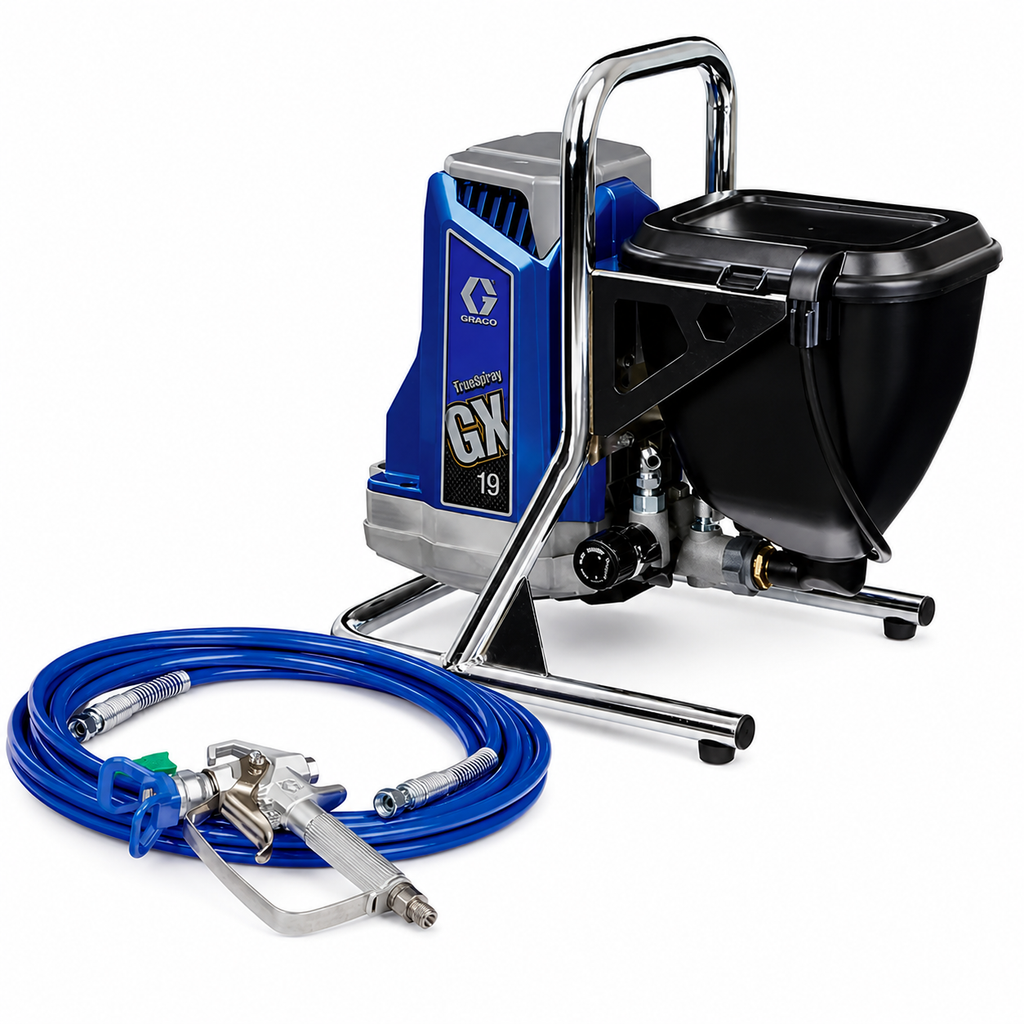

Graco Airless Paint Sprayer FinishPro FFGX 19 (17H223)

Graco Airless Paint Sprayer FinishPro FFGX 19 (17H223)

GRACO

$1,869.00

SKU: 17H223

Title

Quantity

Out of stock

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Graco Airless Paint Sprayer FinishPro FFGX 19 (17H223)

$1,869.00

Description

Graco Airless Paint Sprayer FinishPro GX 19 17H223

GRACO FinishPro GX 19 Electric Airless Sprayer 17H223

FinishPro GX 19 is the quick, portable and affordable solution for all small finishing jobs. Graco's proven piston pump and RAC X FF LP SwitchTip quickly provide a smooth finish. The ProXChange Pump provides quick replacement of the pump on the job site without any tools.

Compare Table

Click here to open table


	GX19	FF GX19	GX 21	190 PC Express	390 PC	390PC Cordless	395 PC PRO
Warranty	1 year	1 year	1 year	1 year	3 years	3 years	3 years
Part Numbers:	25U855	17H223	17H219	Stand 17C384	Stand 17C386 Lo-Boy 17C387 Hi-Boy 17C388	Stand 25T882	Stand 17E881
Max. Tip Size	0.019"	0.019"	0.021"	0.021"	0.021"	0.021"	0.023"
Max. flow - I/min (gpm)	1.4 (0.38)	1.4 (0.38)	1.8(0.47)	1.8(0.47)	1.8(0.47)	1.8(0.47)	2.0(0.52)
Max. pressure - bar (PSI)	207 (3000)	207 (3000)	207 (3000)	207 (3000)	227 (3300)	227 (3300)	227 (3300)
Weight - Kg(Ibs)	16Kg	12.3Kg	13.2Kg	14Kg	Stand 17C386 - 14Kg Lo-Boy 17C387 - 20Kg Hi-Boy 17C388 - 24Kg	14Kg	19Kg
Motor Power (hp)	0.5 DC	0.5 DC	0.87 DC	0.62 DC	0.62 DC	0.62 DC	0.87 TEFC DC
Frame			Direct Immersion
Hopper	■	■	Suction Tube
Ball Knocker - PushPrime Button	■	■	■
Hydraulic Pressure Gauge	■	■	■		■	■	■
ProXChange Pump System	■	■	■
Pump	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston
ProConnect				■	■	■	■
Control				Electronic	Electronic	Electronic	SmartControl 1.0
Tips		FFLP210	517	RAC X LTX 515	RAC X LTX 517	RAC X LTX 517	RAC X LTX 517 LP 315
Guard	RAC X - 246215	RAC X - 246215	RAC X - 246215	RAC X - 246215
Gun filter (mesh)		Easy OutTM 100 - 287033	Easy Out 60 - 288749
Gun	Contractor PC	FTxTM- 288430	FTx	FTx	Contractor PC	Contractor PC	Contractor PC
Pump filter (mesh)			40 - 288747
Hose	1/4" x 15m - 247340	1/4" x 15m - 247340	1/4" x 15m - 247340	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)
	GX19	FF GX19	GX 21	190 PC Express	390 PC	390PC Cordless	395 PC PRO


	GX19	FF GX19	GX 21	190 PC Express	390 PC	390PC Cordless	395 PC PRO
Warranty	1 year	1 year	1 year	1 year	3 years	3 years	3 years
Part Numbers:	25U855	17H223	17H219	Stand 17C384	Stand 17C386 Lo-Boy 17C387 Hi-Boy 17C388	Stand 25T882	Stand 17E881
Max. Tip Size	0.019"	0.019"	0.021"	0.021"	0.021"	0.021"	0.023"
Max. flow - I/min (gpm)	1.4 (0.38)	1.4 (0.38)	1.8(0.47)	1.8(0.47)	1.8(0.47)	1.8(0.47)	2.0(0.52)
Max. pressure - bar (PSI)	207 (3000)	207 (3000)	207 (3000)	207 (3000)	227 (3300)	227 (3300)	227 (3300)
Weight - Kg(Ibs)	16Kg	12.3Kg	13.2Kg	14Kg	Stand 17C386 - 14Kg Lo-Boy 17C387 - 20Kg Hi-Boy 17C388 - 24Kg	14Kg	19Kg
Motor Power (hp)	0.5 DC	0.5 DC	0.87 DC	0.62 DC	0.62 DC	0.62 DC	0.87 TEFC DC
Frame			Direct Immersion
Hopper	■	■	Suction Tube
Ball Knocker - PushPrime Button	■	■	■
Hydraulic Pressure Gauge	■	■	■		■	■	■
ProXChange Pump System	■	■	■
Pump	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston	Endurance Piston
ProConnect				■	■	■	■
Control				Electronic	Electronic	Electronic	SmartControl 1.0
Tips		FFLP210	517	RAC X LTX 515	RAC X LTX 517	RAC X LTX 517	RAC X LTX 517 LP 315
Guard	RAC X - 246215	RAC X - 246215	RAC X - 246215	RAC X - 246215
Gun filter (mesh)		Easy OutTM 100 - 287033	Easy Out 60 - 288749
Gun	Contractor PC	FTxTM- 288430	FTx	FTx	Contractor PC	Contractor PC	Contractor PC
Pump filter (mesh)			40 - 288747
Hose	1/4" x 15m - 247340	1/4" x 15m - 247340	1/4" x 15m - 247340	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)	Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)
	GX19	FF GX19	GX 21	190 PC Express	390 PC	390PC Cordless	395 PC PRO

Videos

Specifications

Maximum Tip Size (in) - 0.019

Maximum Working Pressure (psi) - 3000

Model - FinishPro

Series -GX 19

Type - Airless Sprayer

Features

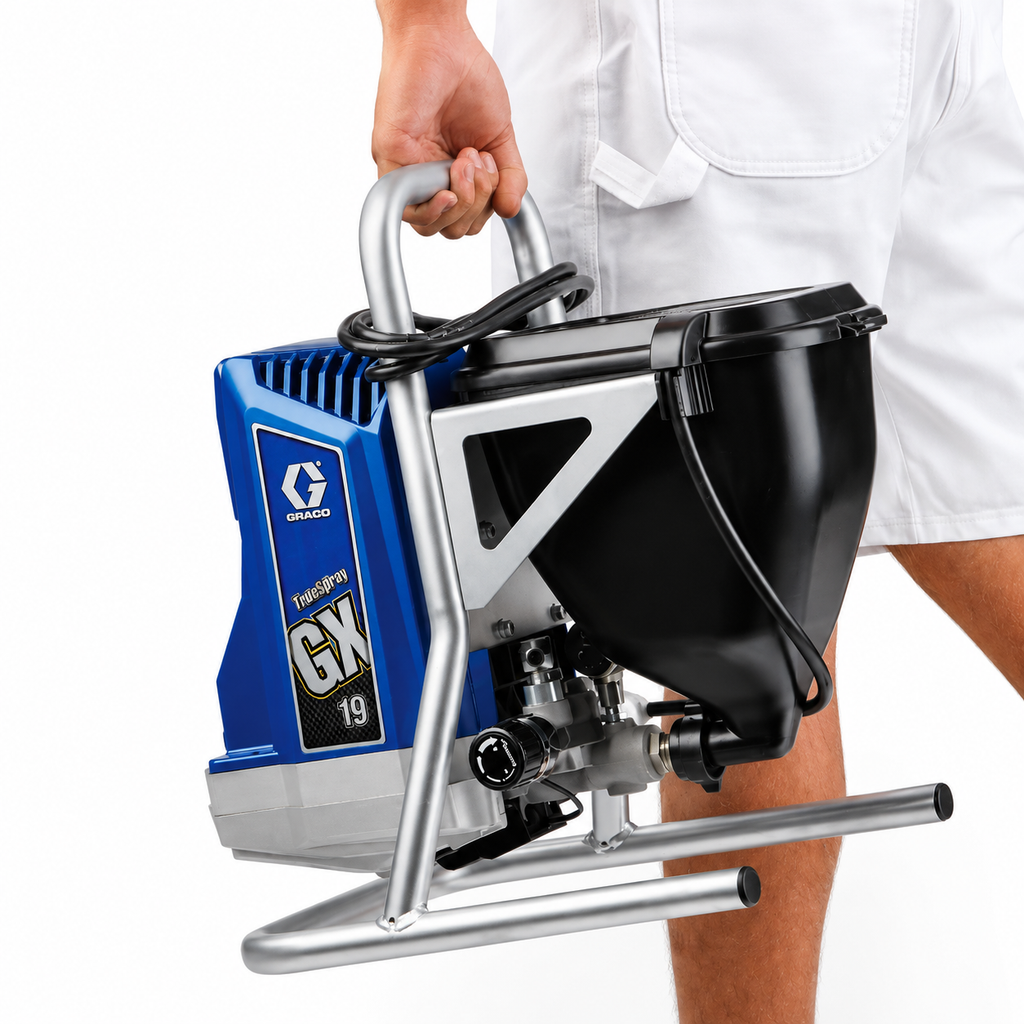

Portable
Lighter than other competitive systems
Easy Carry Handle makes transportation easy
The lid prevents splashes and spills while carrying
5.7 Litre Hopper

Ideal for spraying small projects
Smooth inside surface cleans up fast
Lid included for spill-proof portability
Hopper easily attaches to sprayer without tools for easy cleaning

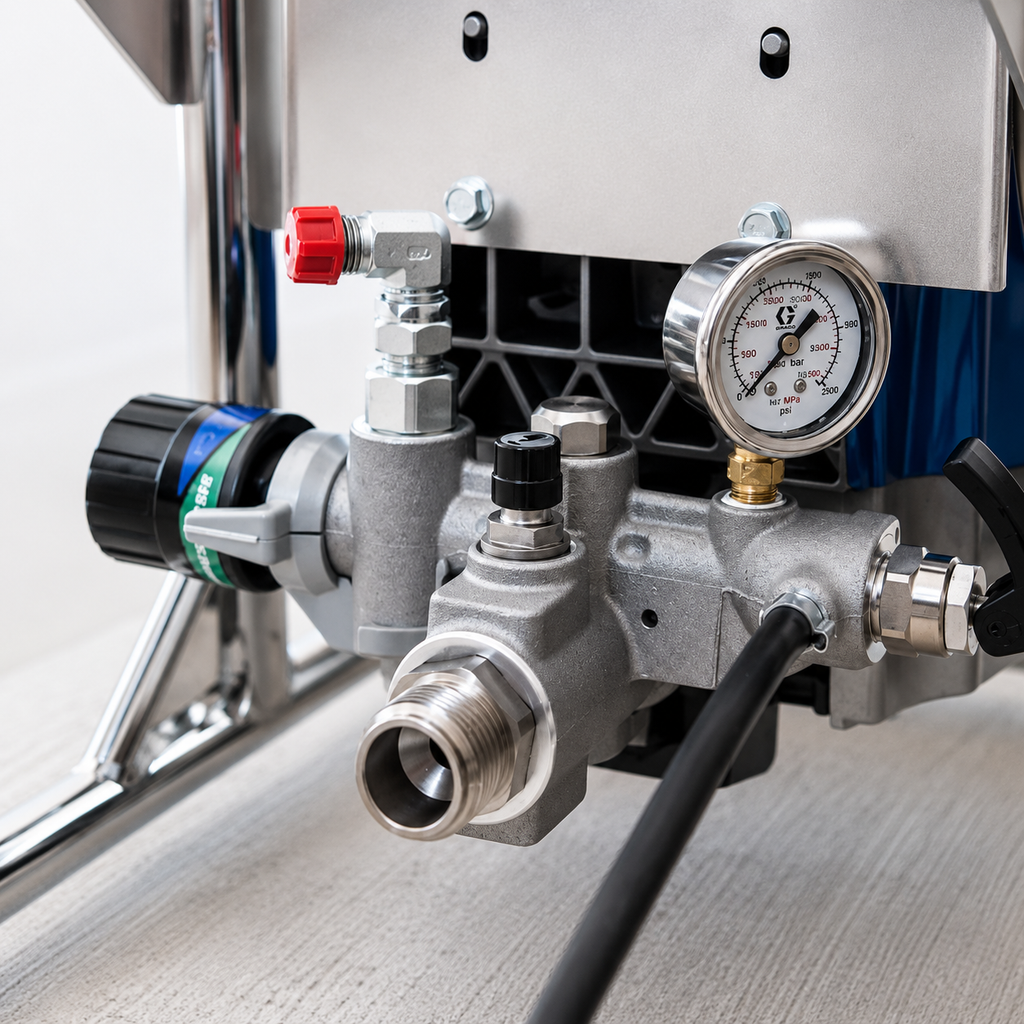

ProX Power-Piston Pump featuring ProXChange
Small deadband pressure enures the finest finish possible
Exceptional durability and long life piston pumps
Exclusive lifetime lubricated wiper pad for maintenance free operation
Modular pump components for easy maintenance
Fast and easy on-the-job pump replacement - no tools needed
Eliminate labour costs and down time expenses

Ftx Spray Gun Contractor

Form fitted handle provides maximum control and comfort
100-mesh gun filter included to minimize tip clogs and protect finish
EasyGlide swivel provides maximum flexibility for effortless hose management

Precision-Cut RAC X FF LP SwitchTip
Sprays at lower pressures with less overspray and up to 2X life
Finer atomisation and softer edges for easier overlapping with pre-orifice design
Allows for fast application of materials
Delivers a softer, more controlled spray fan
Ability to quickly clear tip clogs
Includes solvent seal for extremely hot solvents
