Oldfields Standard Zippy Scaffold Base Unit 1.6m

For Pick-Up Only.

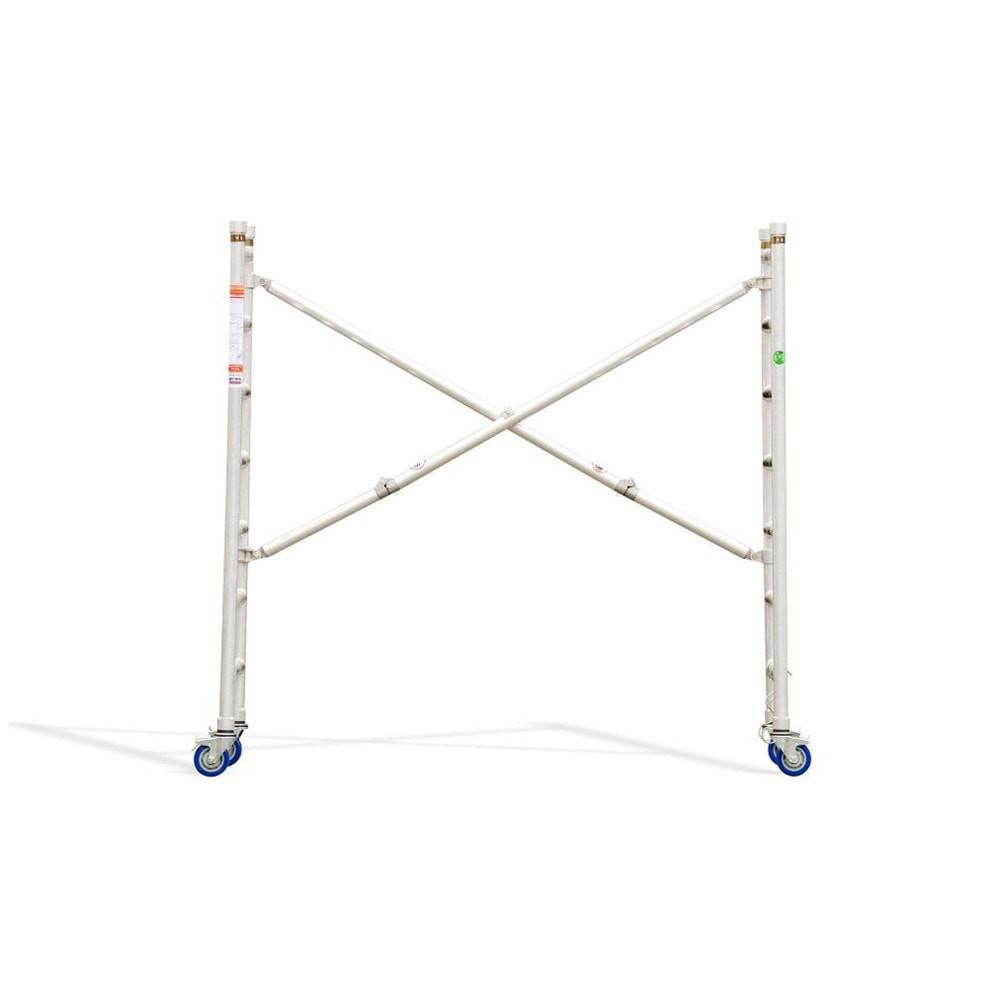

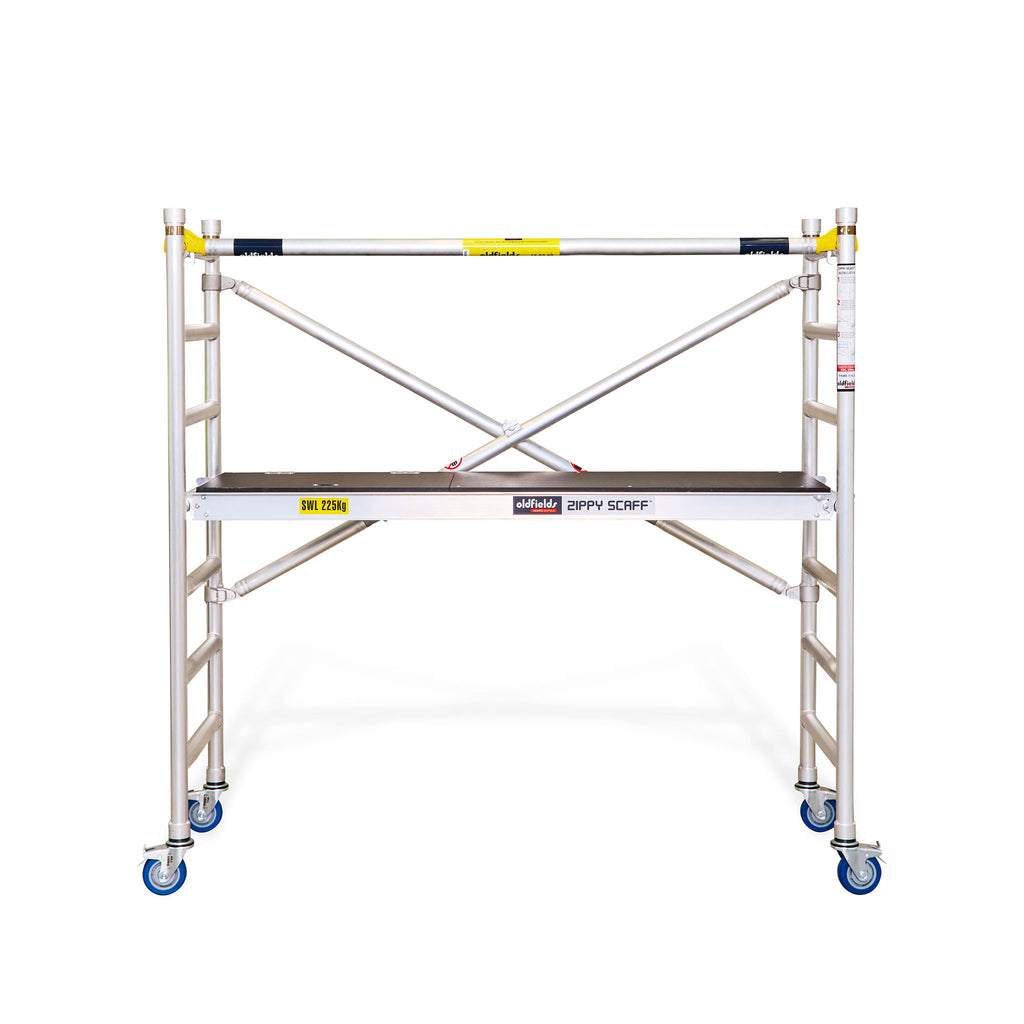

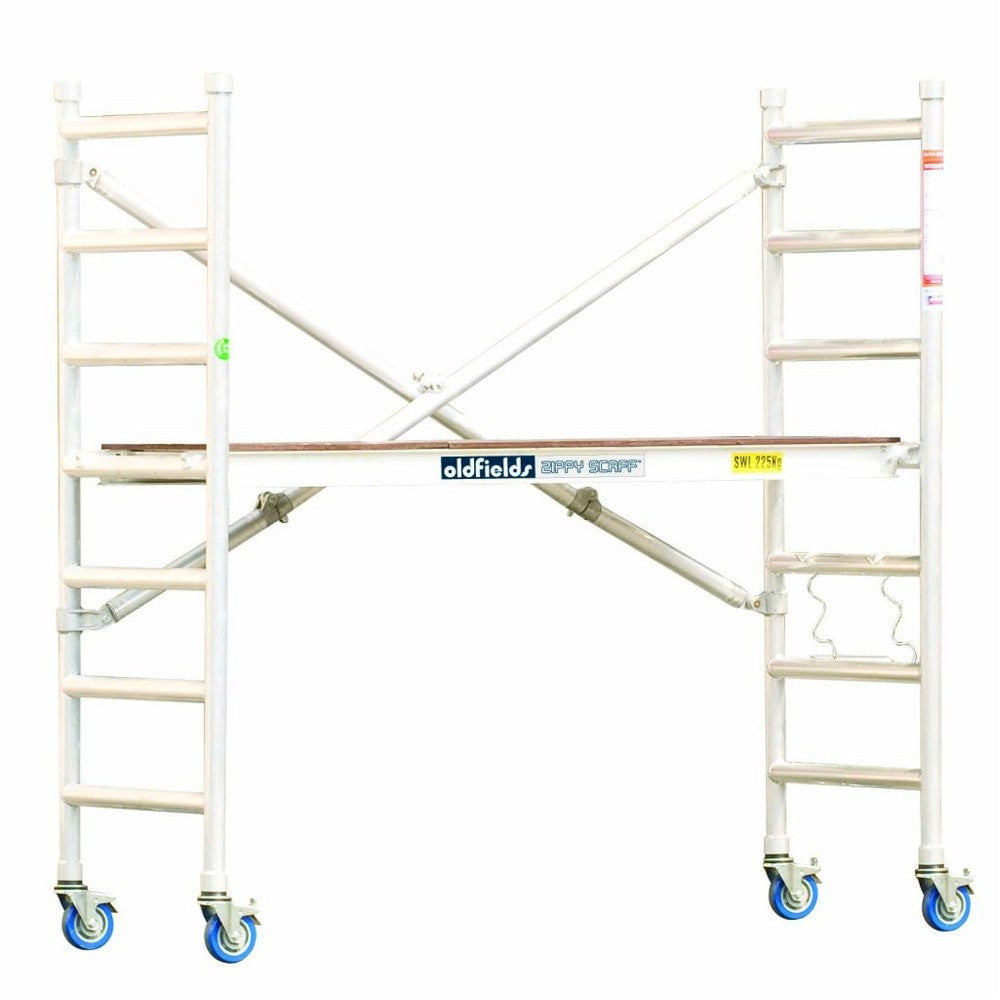

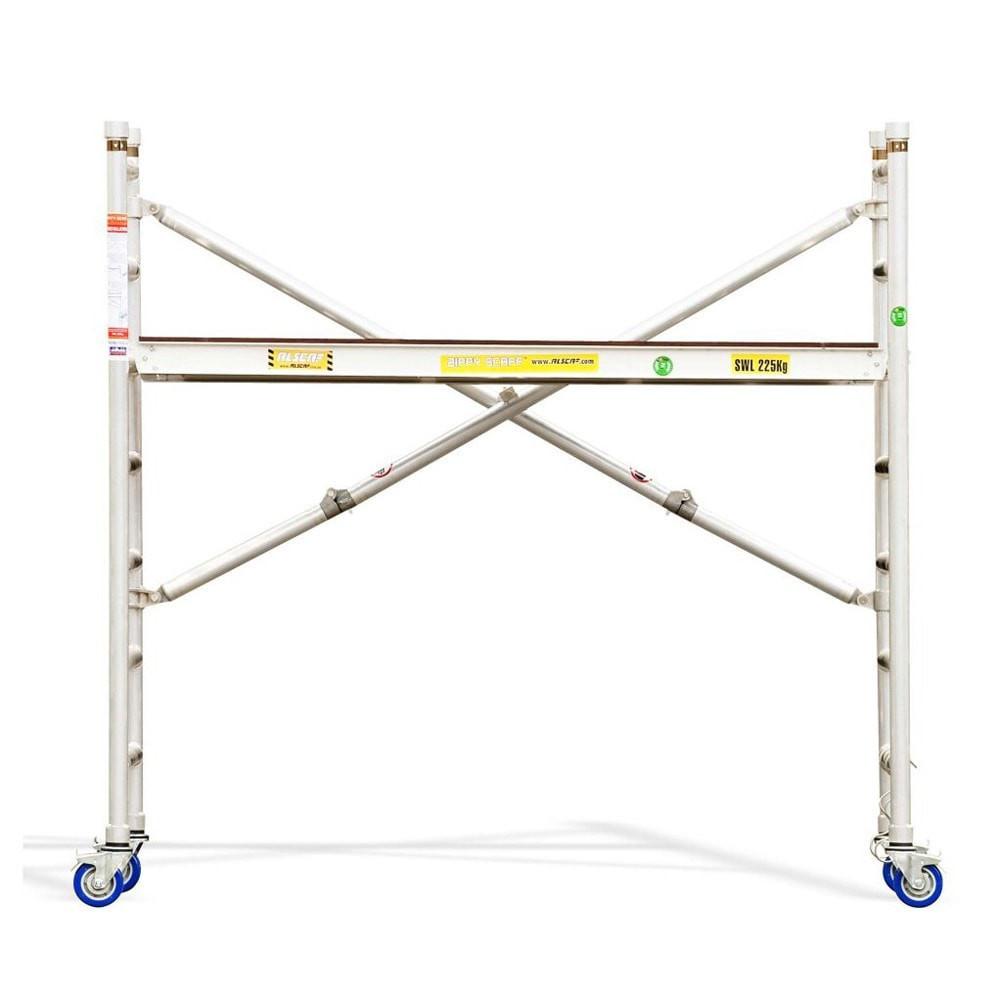

Oldfields Aluminium Standard Zippy Scaffold Base Unit

OPTIONAL Standard Zippy Scaffold Base Unit Guardrail Extension Pack

Light duty foldable scaffold – Quality mobile working platform designed for Commercial and DIY use.

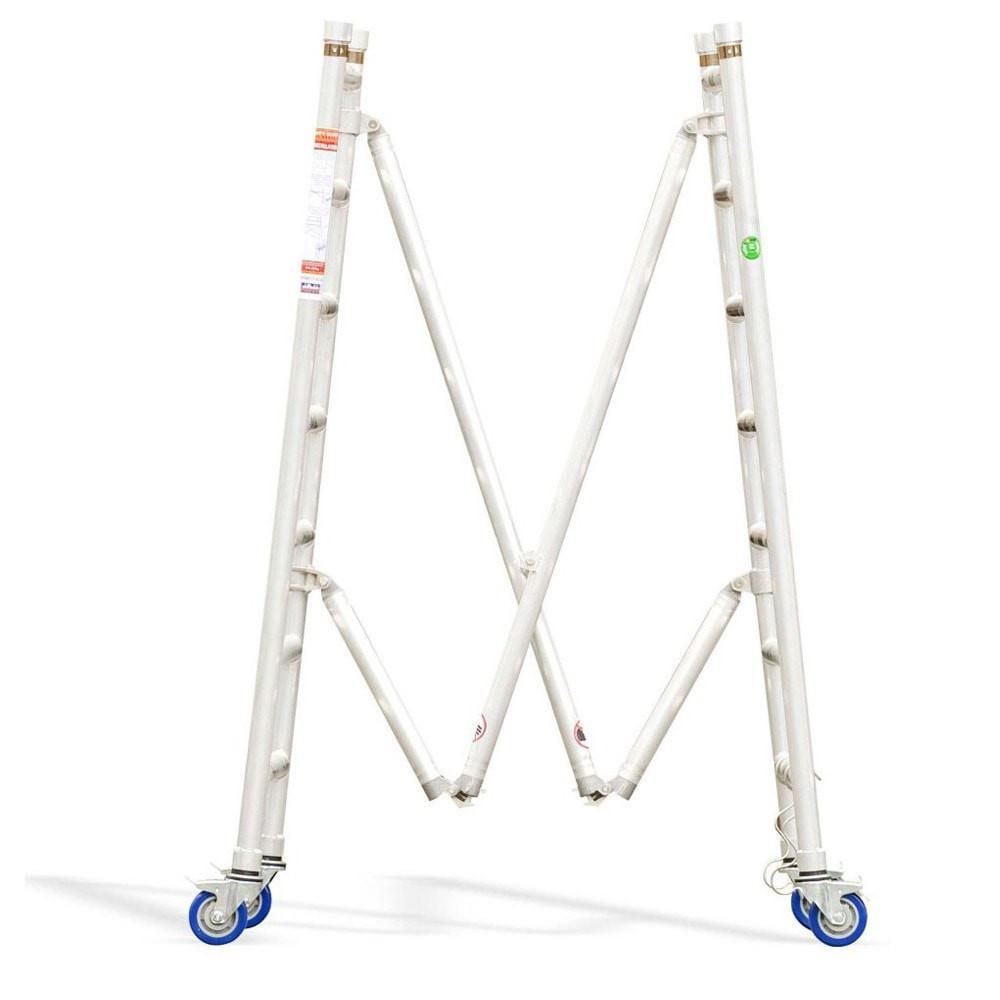

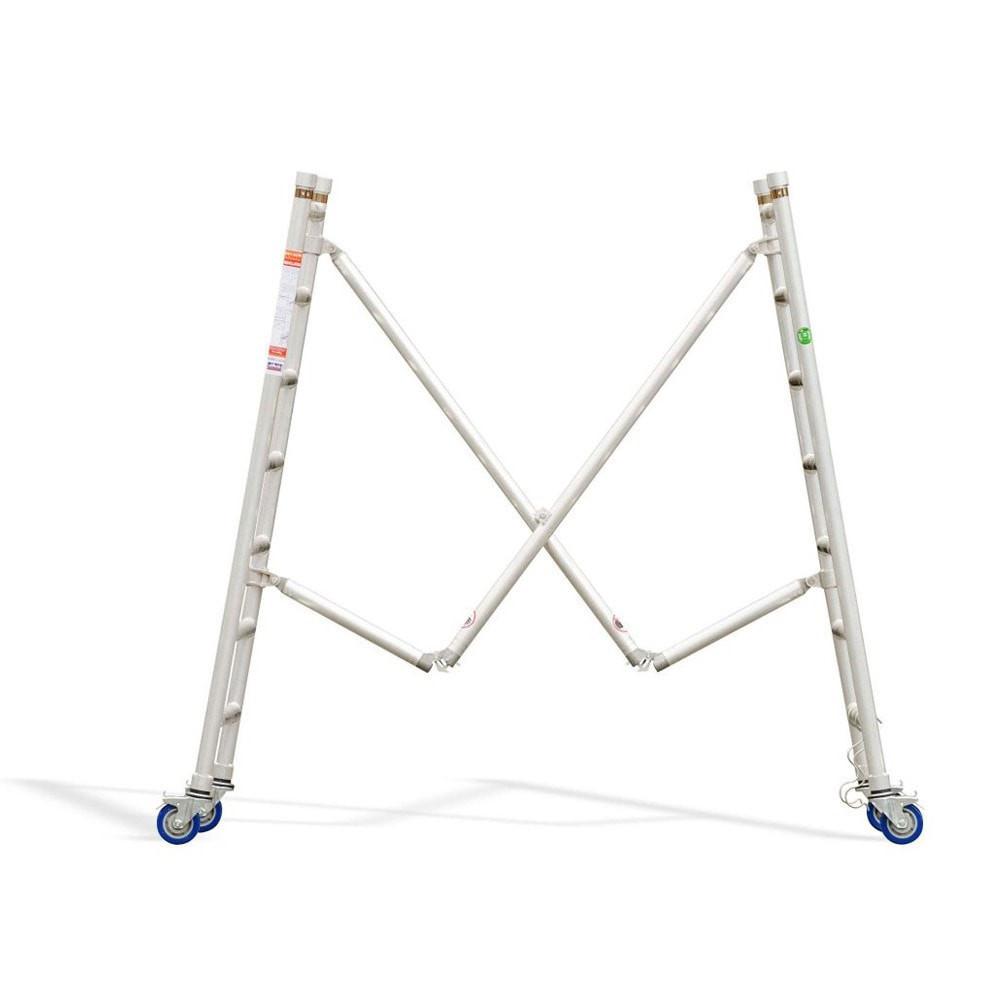

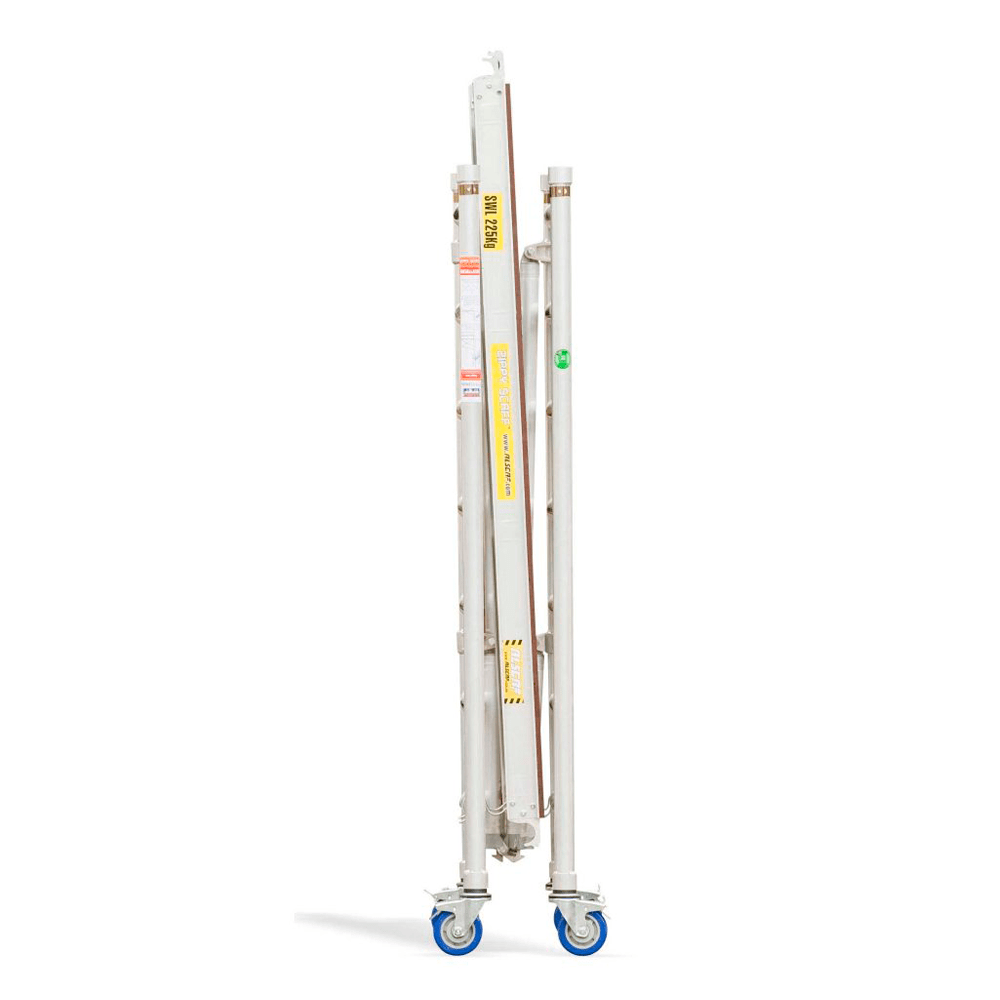

Zippy Scaffolding foldable aluminium scaffold is an extremely versatile folding scaffold built with different trades in mind – including decorators, electricians, insulation contractors, plasterers and sign-writers. Movement is easy – when folded up it can be wheeled through a standard doorway. Ready for use in seconds, it can also act as a trolley for moving equipment around the home, office, factory or work site. Alternate working heights can easily be achieved in seconds by adjusting the working platform.

2 Pick-Up Locations:

St. Leonards, NSW 2065 - 14/6-8 Herbert Street, PaintAccess

25 Helles Avenue Moorebank NSW 2171, Oldfields

FEATURES

• Lightweight
• Compact and portable
• Capacity rating to 225kg
• Erect and dismantle in seconds

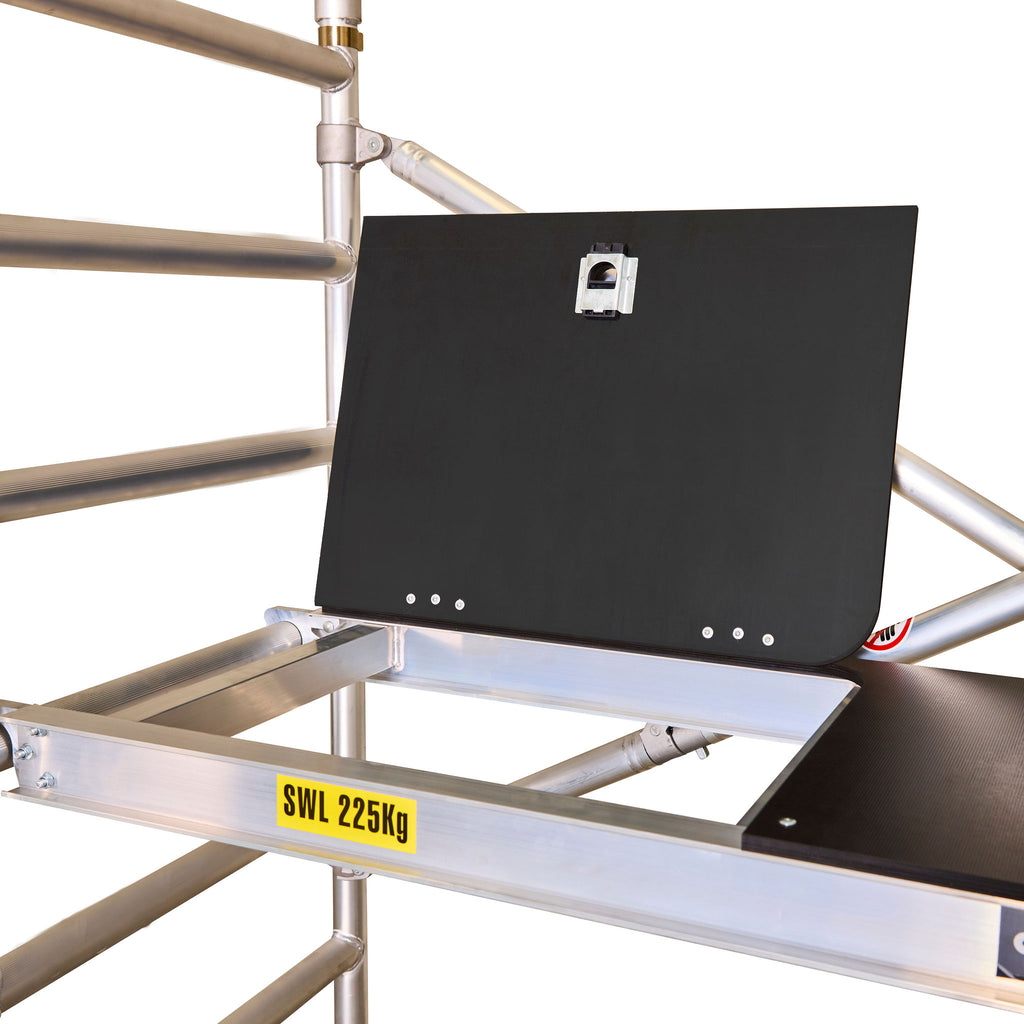

• Built-in ladder access
• Adjustable heights

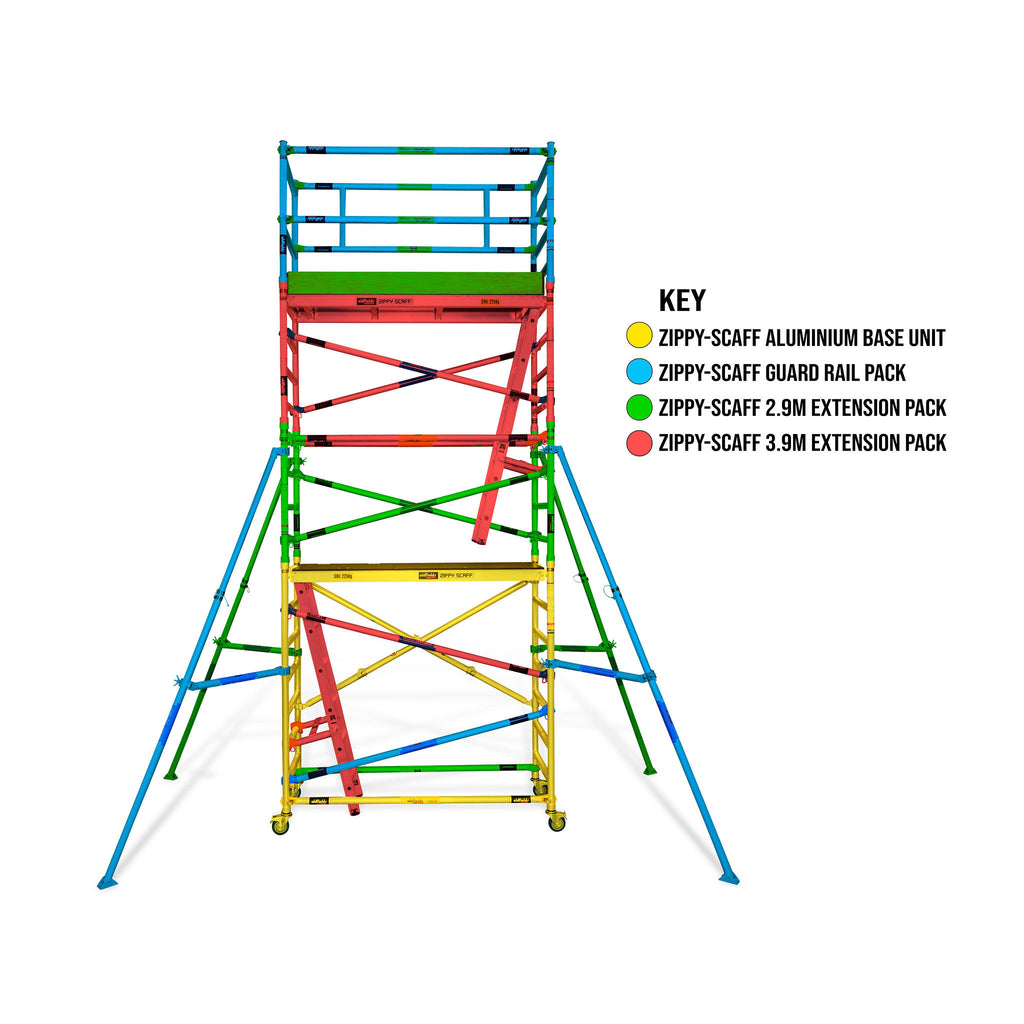

• Top working platform of up to 3.9m if optional extension packs are fitted

Specifications:

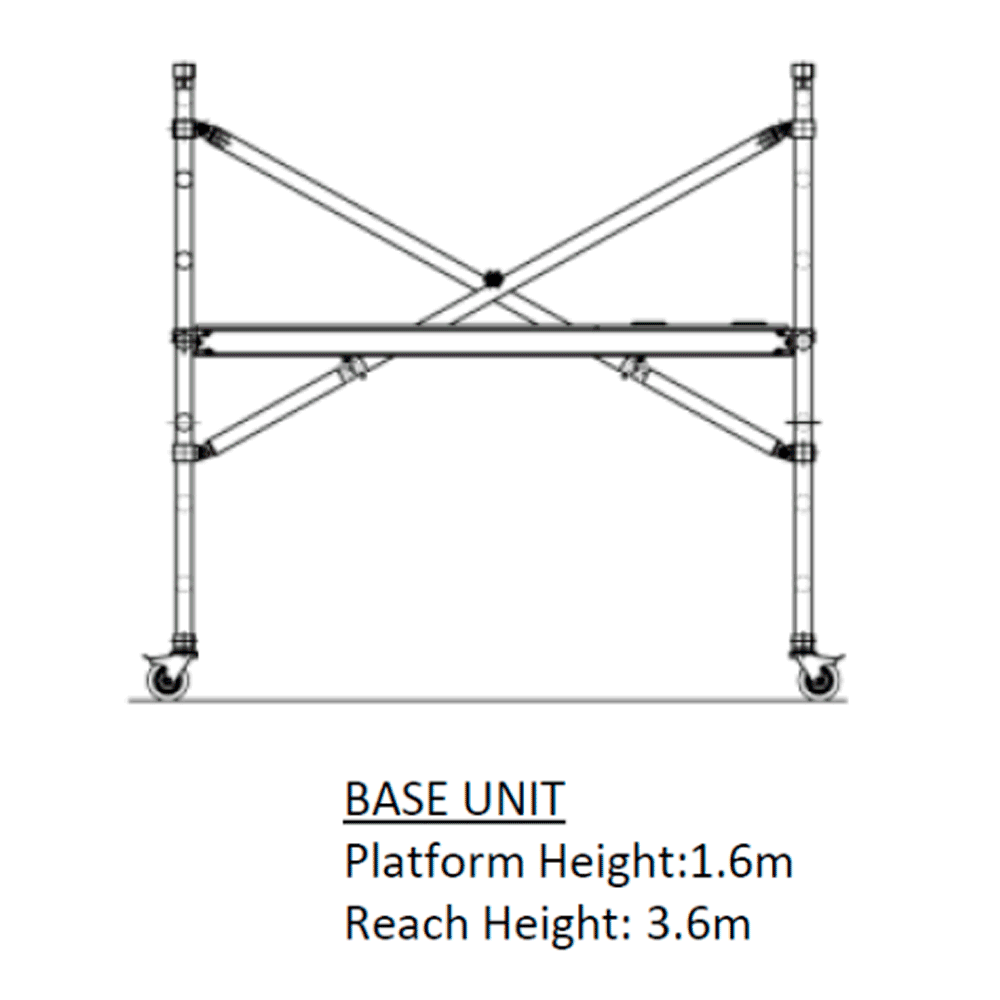

Base Unit (Overall): 1.96m Long x 0.74m Wide x 1.96m High
Standing Heights: 0.4m/0.9m/1.2m/1.9*m/2.9m*/3.9m* (*with extension pack)

Reach height: estimated 3.6m - up to 5.9*m (*with extension packs)
Working Load (Max): 225kg
Boxed Weight: Base Unit 50kg (includes deck)
Boxed Weight: Guardrail Extension Pack 33kg

Need a UTE or a VAN to pick up these items. May fit in the back of a station wagon with seats down.

Safety/ Technical Requirements:

* Extension pack with Outriggers required as per AS/NZS 1576
Plant design registered with WorkCover NSW

Disclaimer: AS/NZ1576 states that all single width towers are to be fitted with outriggers when platform is at 1.9m and above

Assembly Instructions and Safety Warnings

Zippy Scaff-Mini Folding Scaffold Base Unit with Guardrail Pack Assembly Instructions July 2016

NOTE:

For scaffolds, shipping charges may vary from $80-$200 depending on the weight and location.

We pay this additional charge to our supplier and have to forward it to our customers as we cannot absorb them and keep the price of the scaffold the same. If you are in Sydney or Melbourne Metro, this charge may be waived.
