Graco Ultra Max II 795 Standard Electric Airless Sprayer - Hi-Boy Cart (17E617)
$7,446.99
SKU: 17E617
Out of stock
Payment & Security | Refund Policy
Graco Ultra Max II 795 Standard Electric Airless Sprayer - Hi-Boy Cart (17E617)
$7,446.99
Description

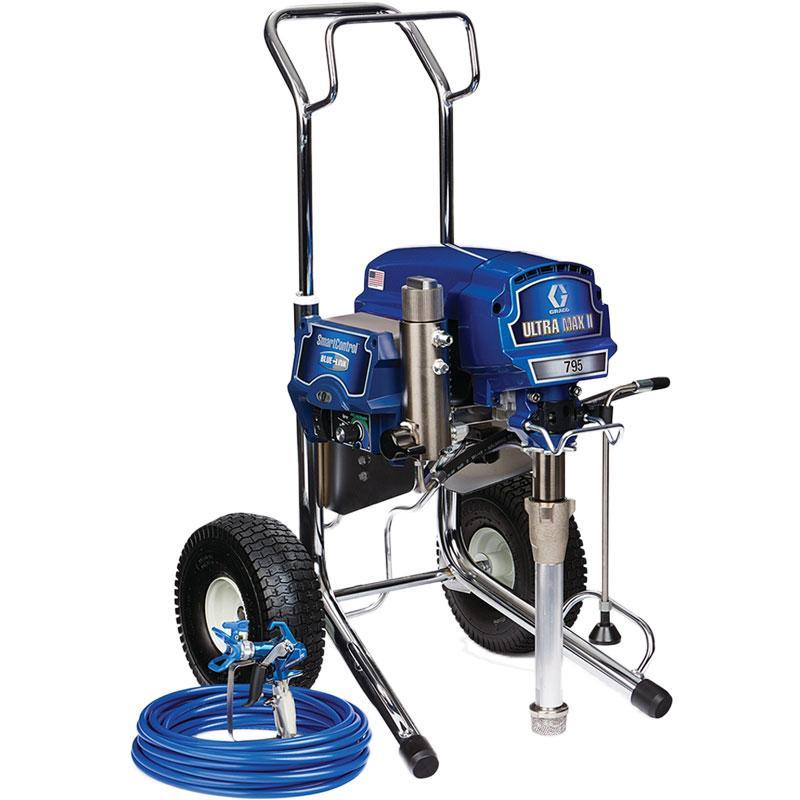

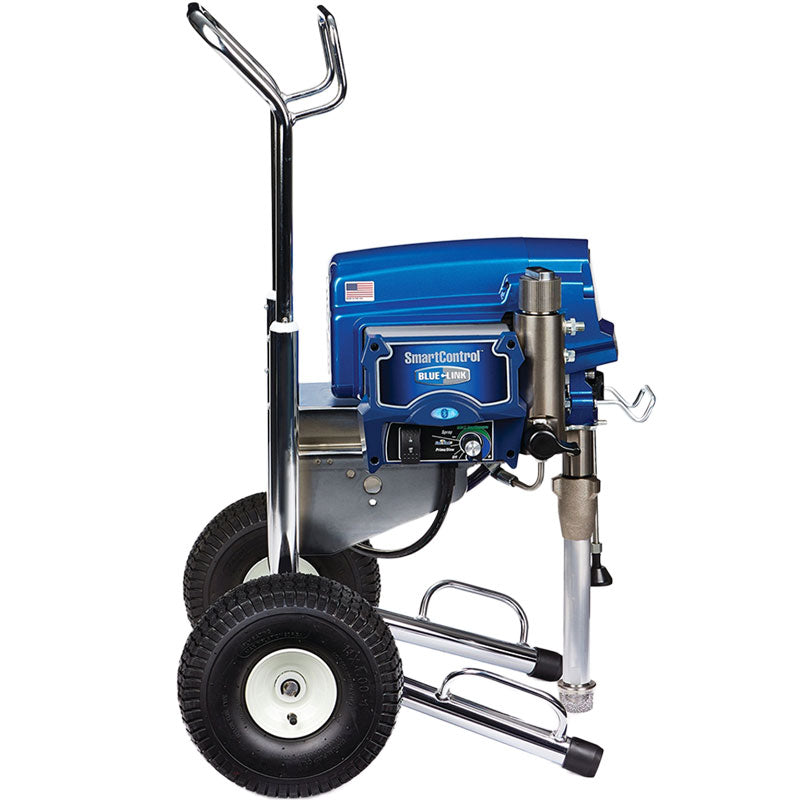

Graco Ultra Max II 795 Standard Electric Airless Sprayer - Hi-Boy Cart
Ideal for one gun and occasional two gun spraying on residential, commercial and industrial jobs
Also available in Lo-Boy model. Same price. Ask us for details.
With a 2.2 hp brushless DC motor, the Ultra Max II 795 can handle multiple guns and is ideal for the professional residential remodeling and repainting contractor who sprays a wide variety of coatings.
0.033" Max Tip / 0.025" x 2 guns / 0.019 x 3 guns
3,300 psi / 4.1 Ipm
2.2 HP Brushless DC Motor, Lifetime Warranty
ProGuard Sprayer protection Conytol
Contractor Gun
Tilt Back Welded Steel Cart Design
EasyOut Pump Filter
Weight - 45kg
-
The Standard Series sprayer comes with these "Only On A Graco" features:
- Advantage Drive System Runs quiet and has a lifetime guarantee.
- MaxPower Brushless DC Motor Never change brushes with this maintenance-free, totally enclosed motor.
- SmartControl 3.0 Pressure Control Delivers consistent spray fan without pressure fluctuations at all spraying pressures, and includes ProGuard technology.
- Endurance Pump Amazingly durable and easy-to-service design means less downtime on the job.

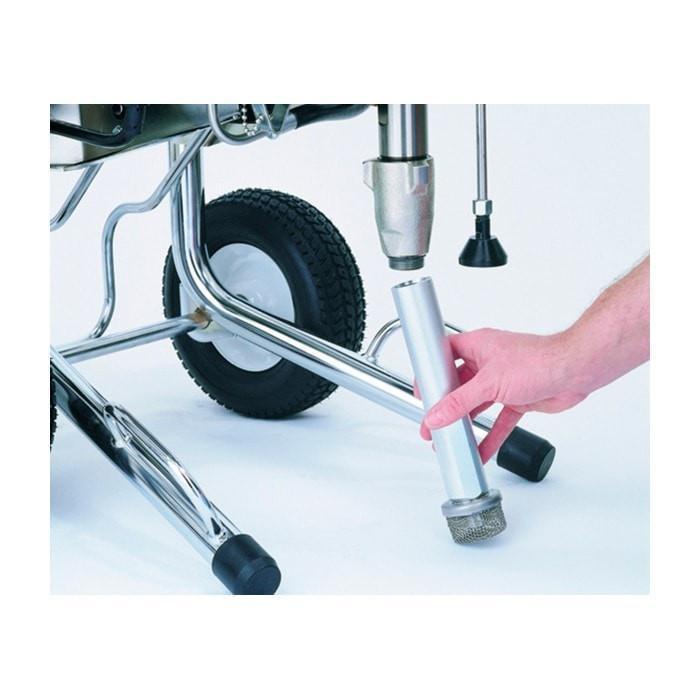

- Easy Out Pump Filter Spill less material when removing the filter element.
- Rugged Cart Design Chrome over steel makes this durable cart last for years.
- Heavy-Duty Prime Valve Maintenance-free design withstands high pressure dumping.
The Ultra Max II 795 is ideal for one gun and occasional two gun spraying on residential, commercial and industrial jobs. Its higher output delivers consistent performance with larger tips and longer hoses spraying heavier coatings.
Makes spraying faster and easier!

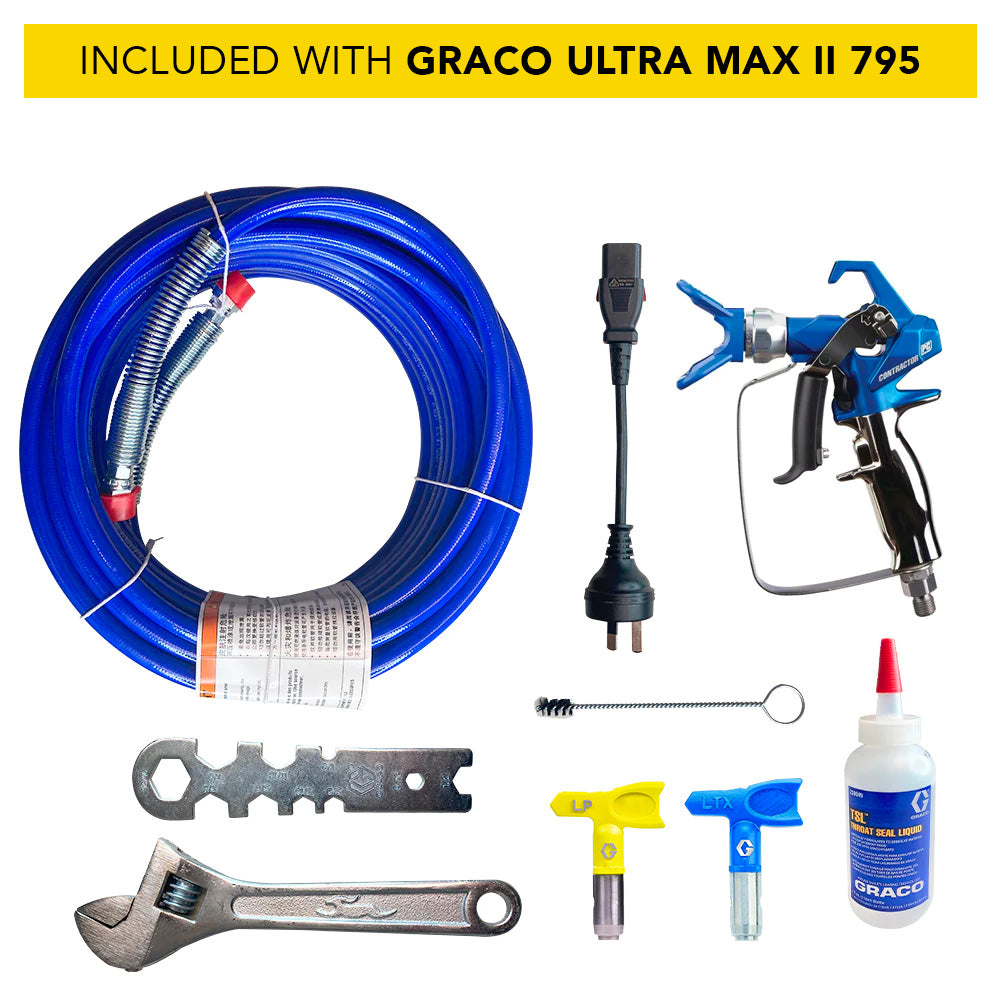

Units include:

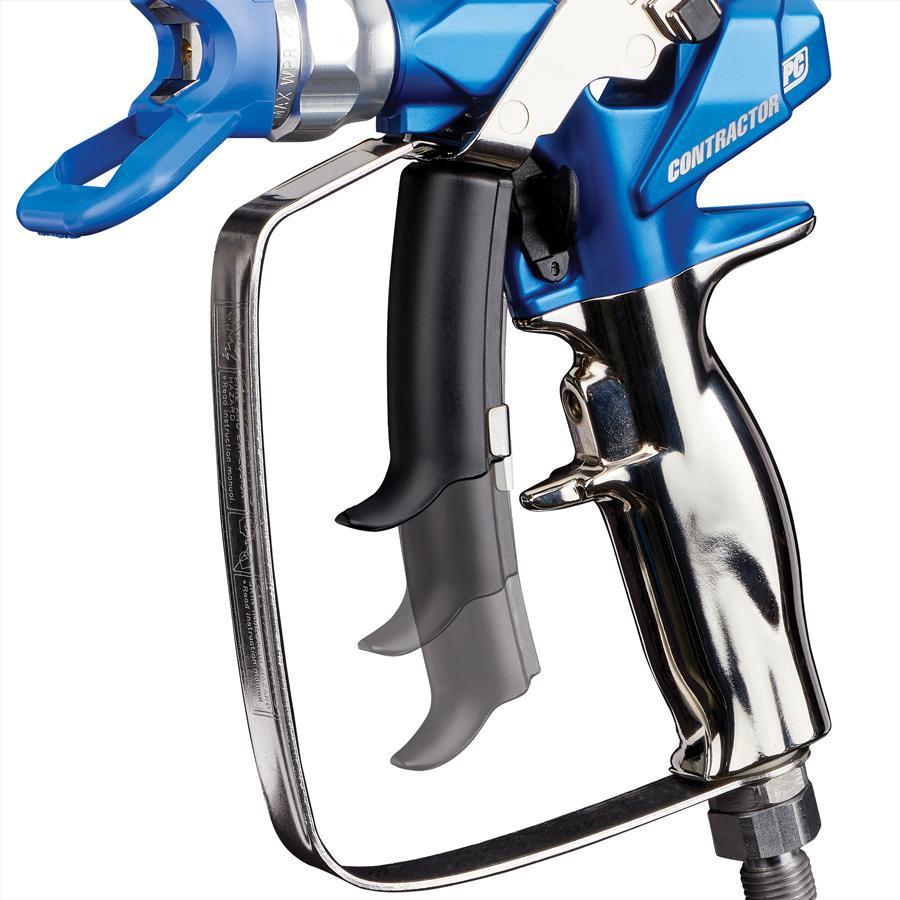

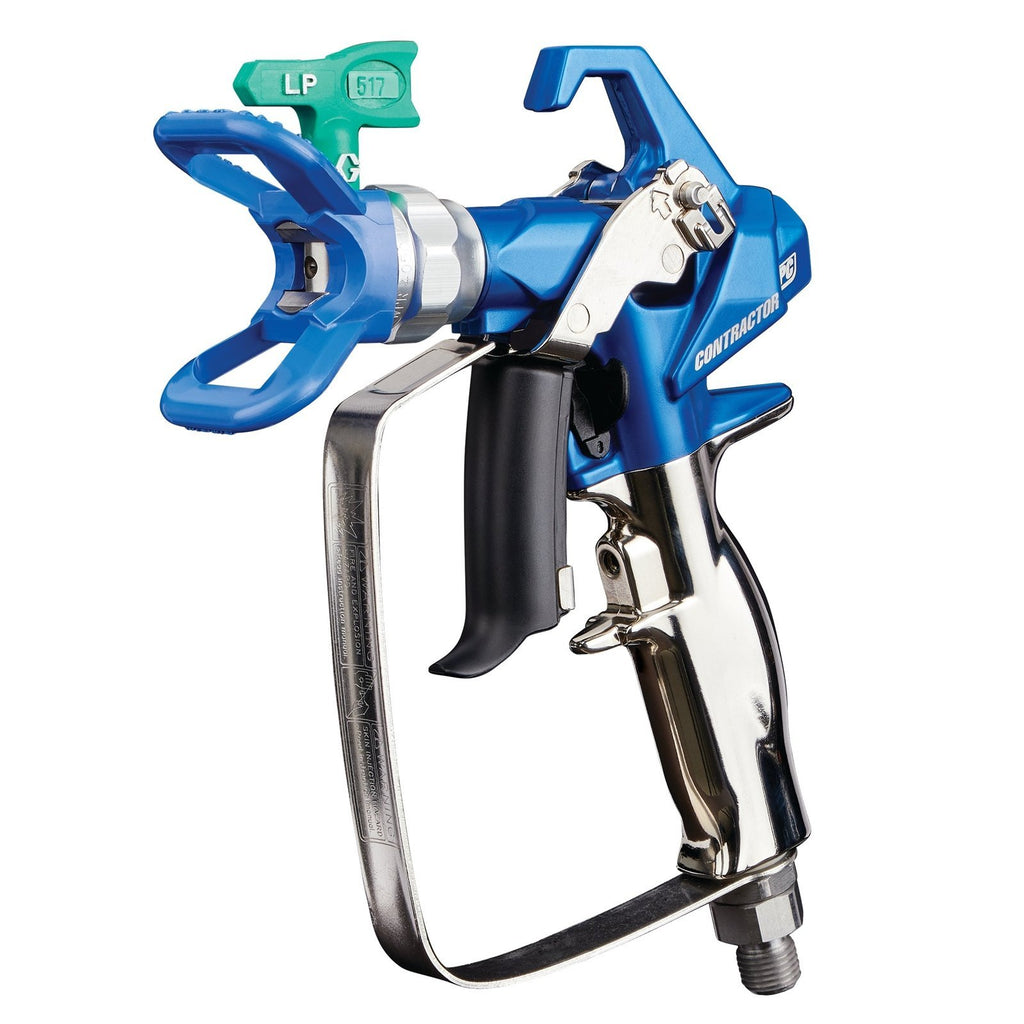

- New Contractor Airless Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete no-tools gun rebuild in seconds with ProConnect cartridge
- RAC X 517 Tip and Guard
- 1/4 in 50 ft (6.4 mm x 15 m) BlueMax Airless Hose
Compare Table
Click here to open table |
 |
 |
 |
 |
 |
 |
 |
| 695 STANDARD | 795 STANDARD | 1095 STANDARD | 695 PC PRO | 795 PC PRO | 1095 PC PRO | 1095 IRONMAN | |
| Warranty | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year |
| Part Numbers: | Lo-Boy 17E610 - Hi-Boy 17E613 | Lo-Boy 17E616 - Hi-Boy 17E617 | 17E620 | 17E614 | 17E619 | 17E621 | 17E623 |
| Maximum Tip Size | 0.031" | 0.033" | 0.035" | 0.031" | 0.033" | 0.035" | 0.035" |
| Maximum bar (psi) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) |
| Maximum (lpm) | 3.6 | 4.1 | 4.5 | 3.6 | 4.1 | 4.5 | 4.5 |
| Motor hp | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.4 brushless DC |
| Weight - Kg | Lo-Boy 17E610 42Kg Hi-Boy 17E613 42kg |
Lo-Boy 17E616 44kg Hi-Boy 17E617 44kg |
55kg | 50kg | 52kg | 64kg | 56kg |
| Pump | Endurance Pump | Endurance Pump | Endurance Pump | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife Extreme |
| ProConnect 2 | ■ | ■ | ■ | ■ | |||
| BlueLink System | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Control | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 |
| Motor | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless |
| Gun | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC |
| Hose | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 |
| Tip | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 |
|
|
|
|
|
|
|
|
| 695 STANDARD | 795 STANDARD | 1095 STANDARD | 695 PC PRO | 795 PC PRO | 1095 PC PRO | 1095 IRONMAN | |
| Warranty | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year |
| Part Numbers: | Lo-Boy 17E610 - Hi-Boy 17E613 | Lo-Boy 17E616 - Hi-Boy 17E617 | 17E620 | 17E614 | 17E619 | 17E621 | 17E623 |
| Maximum Tip Size | 0.031" | 0.033" | 0.035" | 0.031" | 0.033" | 0.035" | 0.035" |
| Maximum bar (psi) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) |
| Maximum (lpm) | 3.6 | 4.1 | 4.5 | 3.6 | 4.1 | 4.5 | 4.5 |
| Motor hp | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.4 brushless DC |
| Weight - Kg | Lo-Boy 17E610 42Kg Hi-Boy 17E613 42kg |
Lo-Boy 17E616 44kg Hi-Boy 17E617 44kg |
55kg | 50kg | 52kg | 64kg | 56kg |
| Pump | Endurance Pump | Endurance Pump | Endurance Pump | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife Extreme |
| ProConnect 2 | ■ | ■ | ■ | ■ | |||
| BlueLink System | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Control | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 |
| Motor | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless |
| Gun | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC |
| Hose | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 |
| Tip | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 |
Reviews
Dimensions
product
74.93 cm
95.25 cm
66.04 cm
Weight
May require help to carry
Total Weight:
58.97 kg
