Graco FinishPro HVLP Sprayers Range with Value Pack
$2,490.00

Description

Graco FinishPro HVLP Sprayers Range With Value Pack

Special Value Pack - PaintAccess

    Graco's FinishPro HVLP (High Volume Low Pressure) sprayers incorporate the newest technology allowing contractors and woodworkers to achieve the highest quality professional finish available in the industry.

    PROFESSIONAL FINISH WITH EXTREME CONTROL

    Documents:

    Compare Table

    Click here to open table
    HVLPTM STANDARD 7.0 HVLPTM STANDARD 9.0 HVLPTM PROCONTRACTOR 7.0 HVLPTM PROCONTRACTOR 9.0 HVLPTM PROCONTRACTOR 9.5 HVLPTM PROCOMP 9.5
    SPECIFICATIONS
    Part numbers 17R074 17R075 17R078 17R079 17R080 17R081
    Warranty 3 years 3 years 3 years 3 years 3 years 3 years
    Turbine stages 3 5 3 5 5 5
    Motor Watts/HP 1200/1.63 1300/1.77 1200/1.63 1300/1.77 1600/2.18 1800/2.45
    Max. air working pressure - bar (PSI) 0.48 (7) 0.6 (9) 0.5 (7) 0.62 (9) 0.7 (9.5) 0.7 (9.5)
    Weight - kg (lbs) 8.1 (18) 8.6 (19) 10.4 (23) 10.8(24) 11.7 (26) 13.6 (30)
    FEATURES
    TurboForceTM II technology ■ ■ ■ ■ ■ ■
    SmartStart ■ ■ ■ ■
    TCS System ■ ■ ■ ■ ■ ■
    Quick release needle ■ ■ ■ ■ ■ ■
    Flex LinerTM System ■ ■ ■ ■ ■ Remote Cup
    Air flow control at the gun Preset Ratio Preset Ratio ■ ■ ■ ■
    Material volume control at the gun ■ ■ ■ ■ ■ ■
    Spray fan size control at the gun ■ ■ ■ ■ ■ ■
    Needle nozzle storage ■ ■ ■ ■
    Air filtration Foam Foam Automotive Automotive Automotive Automotive
    COMPOSITION
    Needle nozzle-kit #3 #3 #3 #3, #4 #3, #4, #5 #3, #4, #5
    Gun EDGE® II EDGE® II EDGE® II Plus EDGE® II Plus EDGE® II Plus EDGE® II Plus
    Hose Super-FlexTM Air 6M - 17R300 Super-FlexTM Air 6M - 17R300 Super-FlexTM Air 9M - 257159 Super-FlexTM Air 9M - 257159 Super-FlexTM Air 9M - 257159 Super-FlexTM Air 9M - 257159
    Whip hose Super-FlexTM Air 1.2M - 17R299 Super-FlexTM Air 1.2M - 17R299
    Whip hose ■ ■
    HVLPTM PROCONTRACTOR 7.0
    HVLPTM PROCONTRACTOR 9.0
    HVLPTM PROCONTRACTOR 9.5
    HVLPTM PROCOMP 9.5

    Specifications

    SERIES TYPE - Air-Powered Sprayer

    PRODUCT SERIES - Standard/ProContractor/ProComp

    Features

    STANDARD SERIES

    • Perfect for small jobs
    • Offers everyday reliability
    • Just the essential features you need

    Spray in Any Direction

    • FlexLiner Bag system replaces traditional material cups
    • Spray at any angle with no adjustment, even upside down
    • Easy cleanup, either reuse the liner or toss, and no suction tube to clean
    • Spray nearly all the material from the cup reducing the need to refill often
    • Lighter weight than metal cup systems

    Turbo Control System

    • Adjust TurboForce Turbine speed to match the performance required
    • Reduces heat build up
    • Runs quieter
    • Extends turbine system life

    EDGE II Gun

    • Patented Single User Control combines material and air flow into one simple control
    • Exclusive Graco air cap design increases the fluid flow in every need by 4X
    • Change out needles from the front of the gun with just a click
    • 75% lighter trigger pull than the competition with EasyGlide

    Super-Flex Air Hose

    • 15% lighter weight than other leading brands for more control at the gun
    • No tools needed to connect

    TurboForce Technology

    • Exclusive, proprietary turbine design builds more pressure through each stage, resulting in more performance at the gun
    • More air flow and air pressure means higher production with less thinning of material
    • Generates less heat and provides longer turbine life

    Standard Filtration System

    • Washable filter extends motor life and ensures a quality finish
    • Toolless filter removal
    • Out performs foam filters commonly used on other HVLP sprayers

    Steel "Tough Box" Design

    • Rugged, all steel enclosure protects the turbine on the job and during transport
    • 50% smaller size and 30% lighter than the previous version

    PROCONTRACTOR SERIES

    • Ideal sprayer for small-to-medium jobs
    • Offers unmatched life with SmartStart
    • Loaded with features that offer convenience, control and produce a superior spray finish

    PROCONTRACTOR SERIES includes Standard features plus

    SmartStart Turbine

    • Automatically shuts off when not in use so if you're not spraying, it's not running
    • Reduces jobsite noise, resulting in less fatigue
    • Automatic shut-off reduces heat and extends turbine life

    TurboControl System with LED Display

    • Adjust the TurboForce turbine speed to match the performance you require
    • Reduces heat build up
    • Runs quieter
    • Extends turbine system life
    • 50% longer hoses

    EDGE II Plus Gun

    • Ultimate control with independent user controls for material volume, air flow, and spray fan size
    • Exclusive Graco air cap design increases the fluid flow in every need by 4X
    • Change out needles from the front of the gun with just a click
    • 75% lighter trigger pull than the competition with EasyGlide

    Dual Filtration System

    • Premium automotive-grade filter provides industry-leading, high performance filtration
    • Outperforms foam and traditional paper filters used on most HVLP systems

    Compact and Durable Body

    • Rugged all steel enclosure protects the turbine on the job and during transport
    • On-board gun and cup holder allows for easy transport and paint refills with less spills
    • Separate utility toolbox built-in for needle storage

    PROCOMP SERIES

    • Built to deliver for medium-to-large jobs
    • Offers unmatched life with SmartStart
    • Twice the capacity

    PROCOMP SERIES includes Standard and ProContractor features plus

    Double the capacity

    • Powerful, built-in compressor
    • Ability to separate the gun from the material cup
    • Get more done by refilling less with double the cup size
    • Spray longer due to less weight



    What's Included

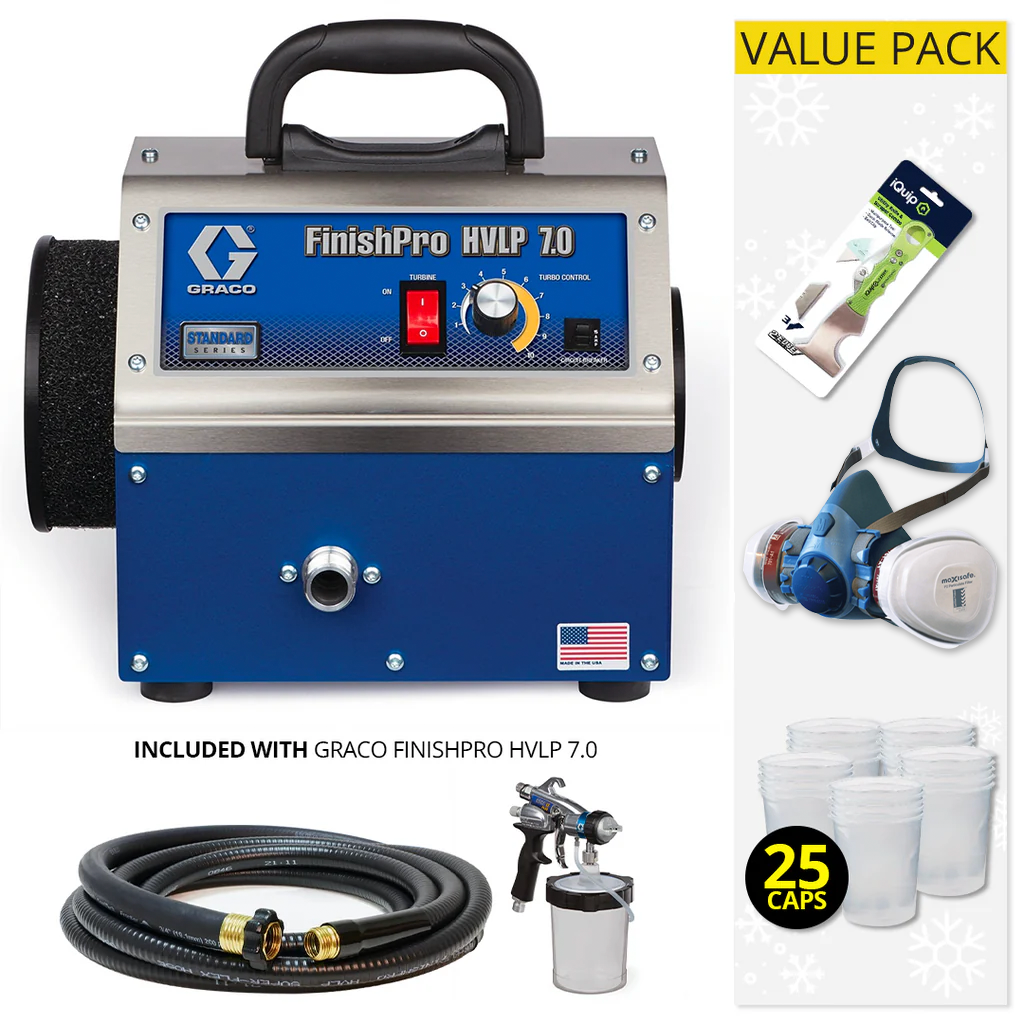

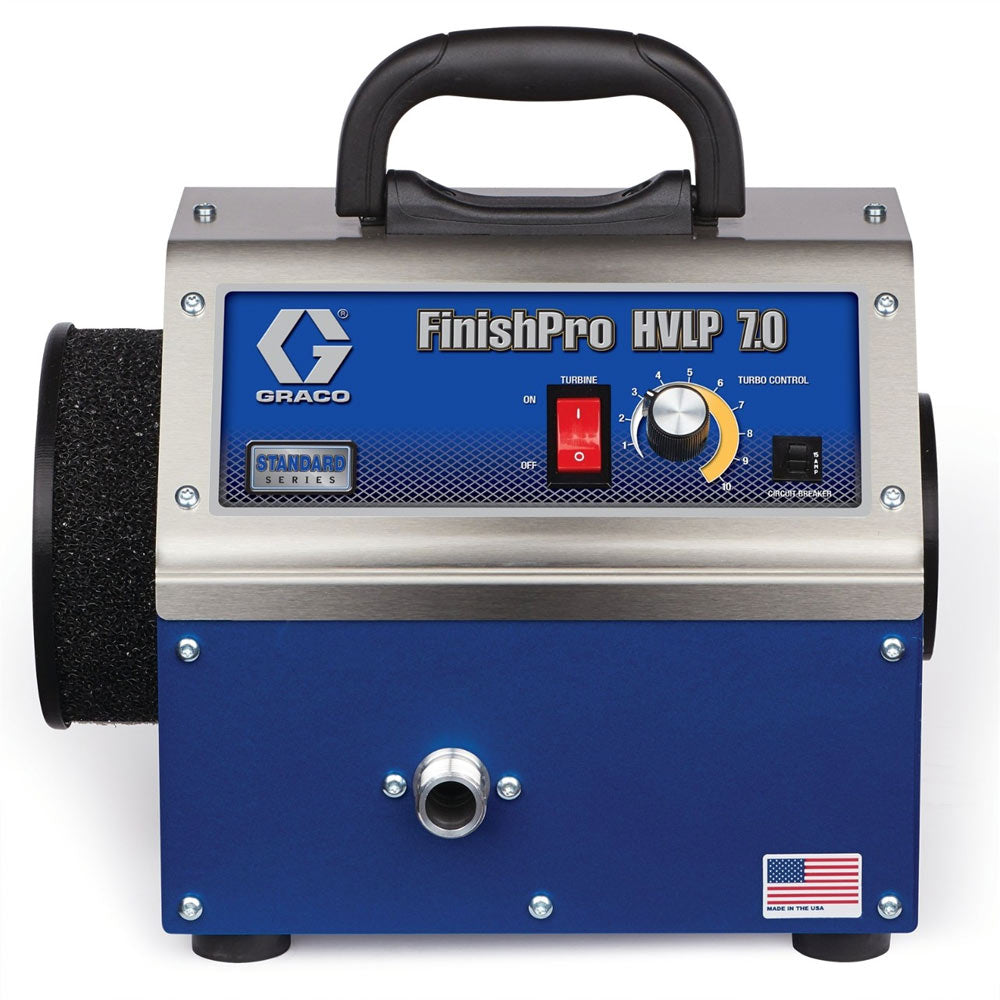

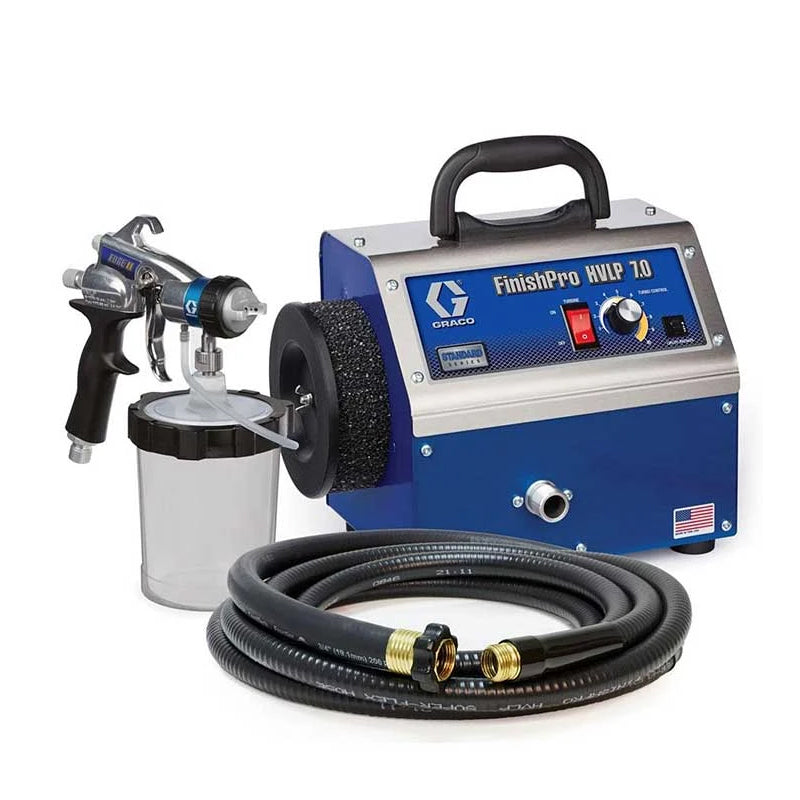

    FinishPro HVLP 7.0 Standard, includes:

    • EDGE II Gun
    • 1 qt (1 l) Cup with FlexLiner
    • #3 Quick Release Fluid Set
    • 20 ft (6 m) Super-Flex Air Hose

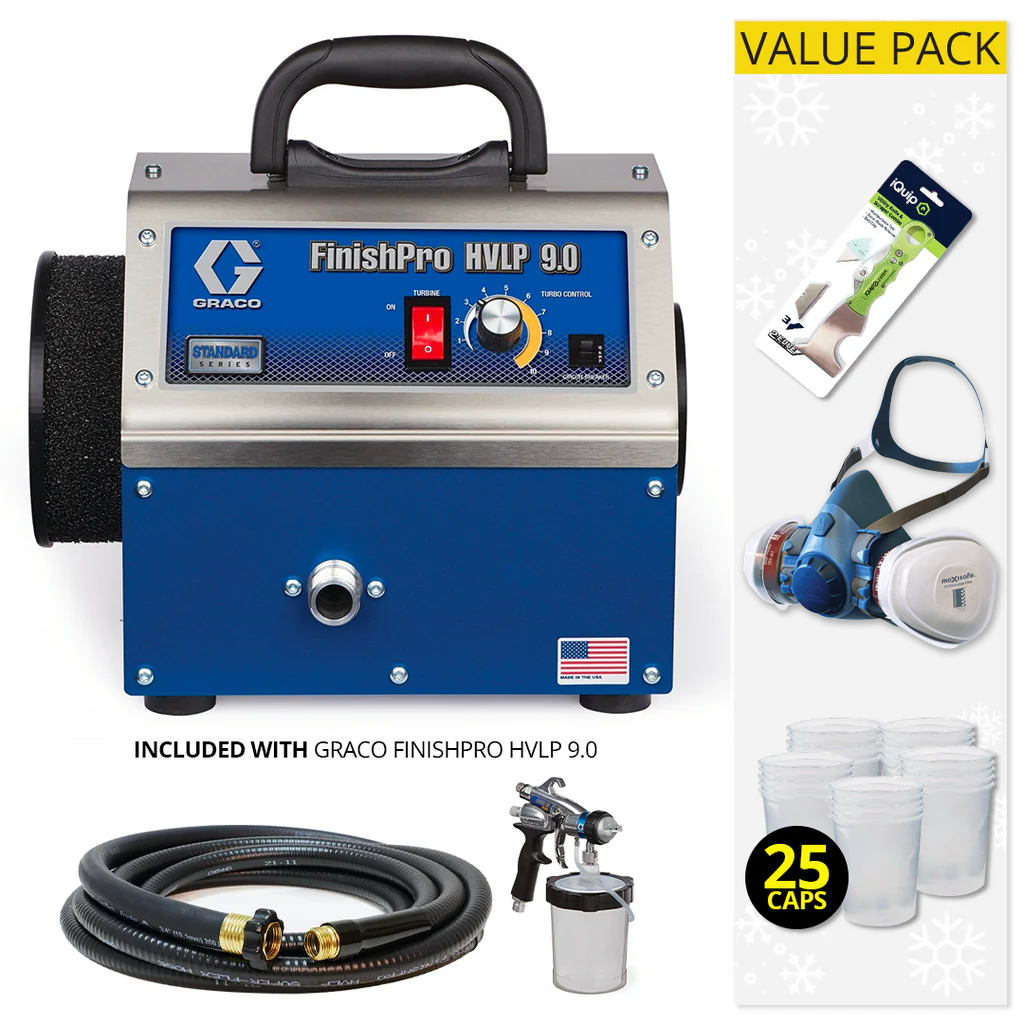

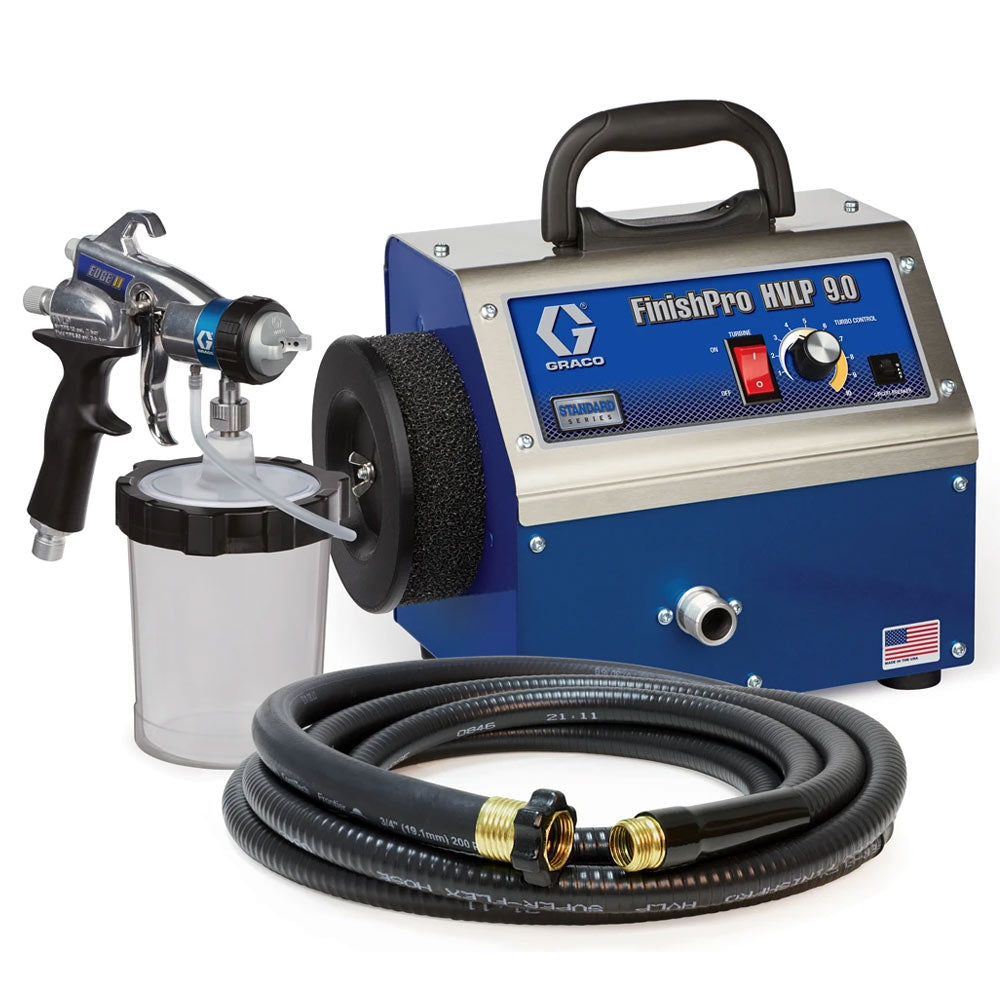

    FinishPro HVLP 9.0 Standard, includes:

    • EDGE II Gun
    • 1 qt (1 l) Cup with FlexLiner
    • #3 Quick Release Fluid Set
    • 20 ft (6 m) Super-Flex Air Hose

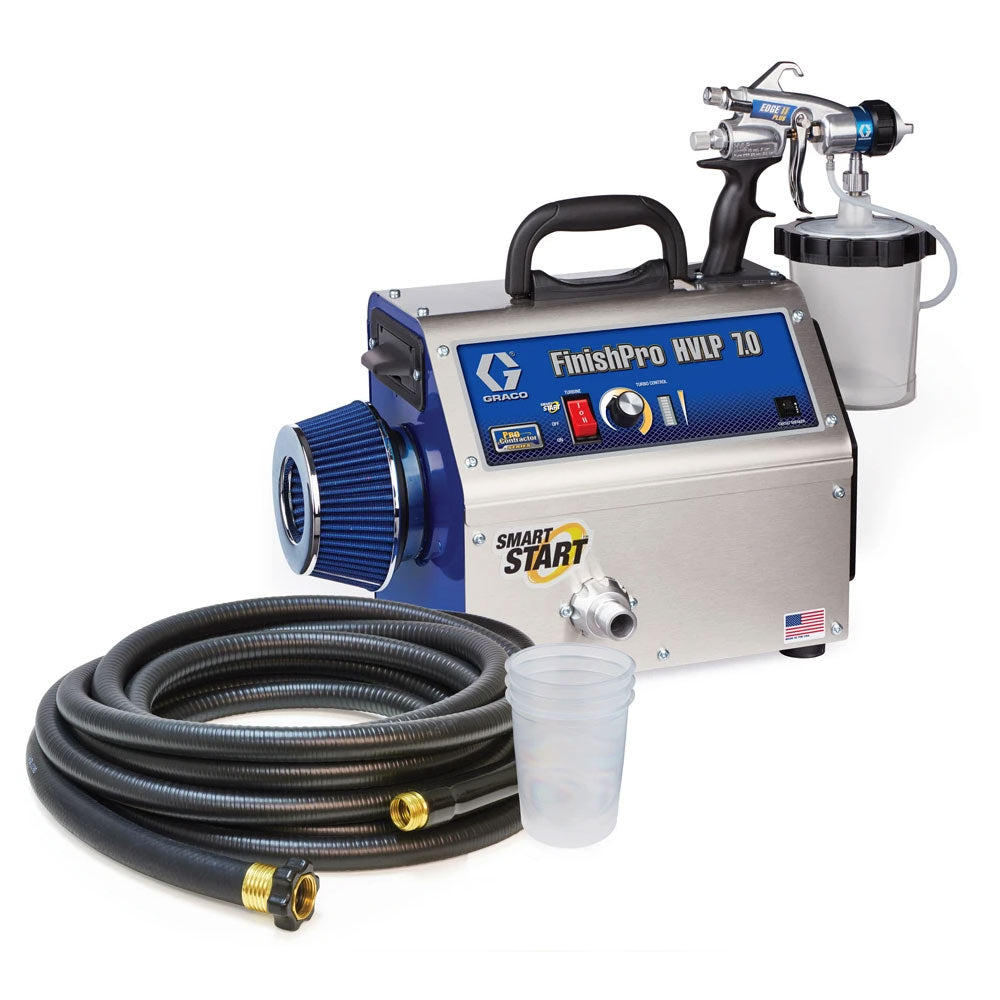

    FinishPro HVLP 7.0 ProContractor, includes:

    • EDGE II Plus Gun
    • 1 qt (1 l) Cup with FlexLiner
    • #3 Quick Release Fluid Set
    • 30 ft (9 m) Super-Flex Air Hose

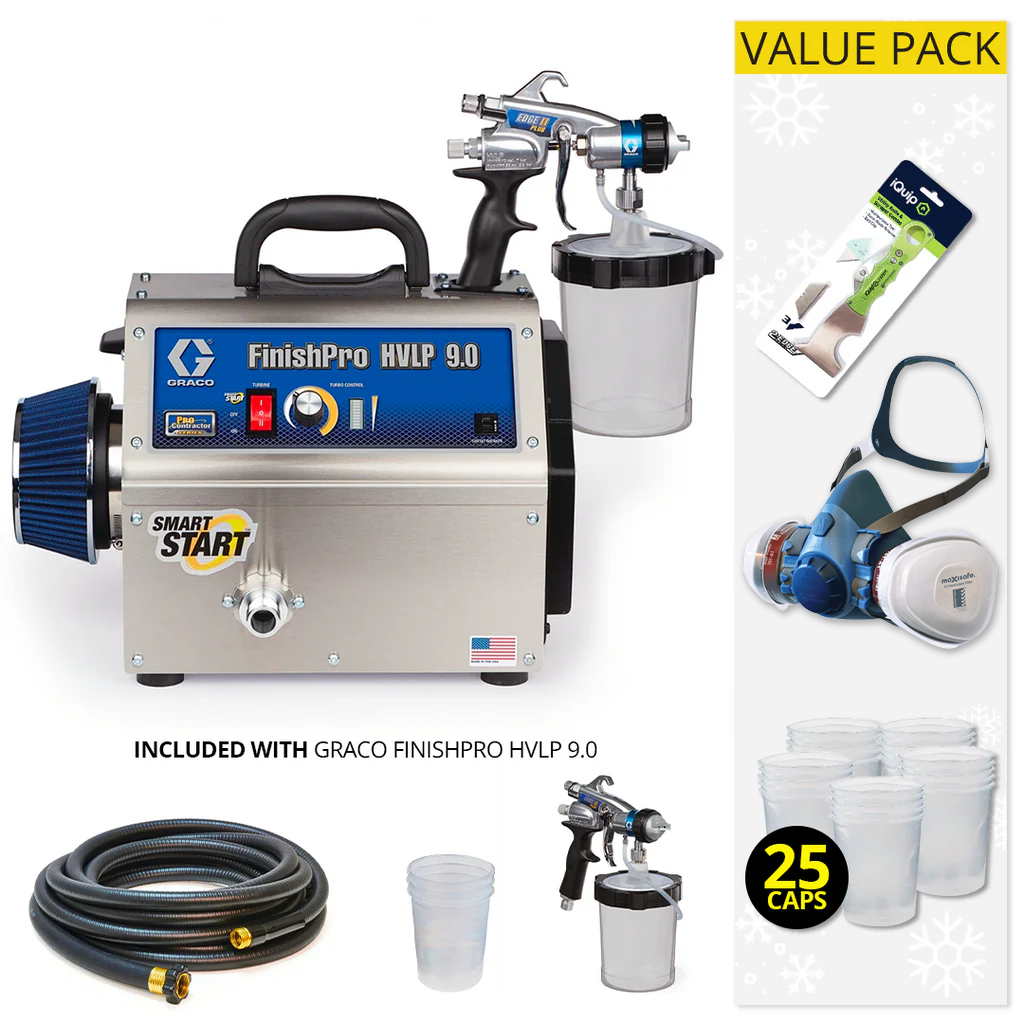

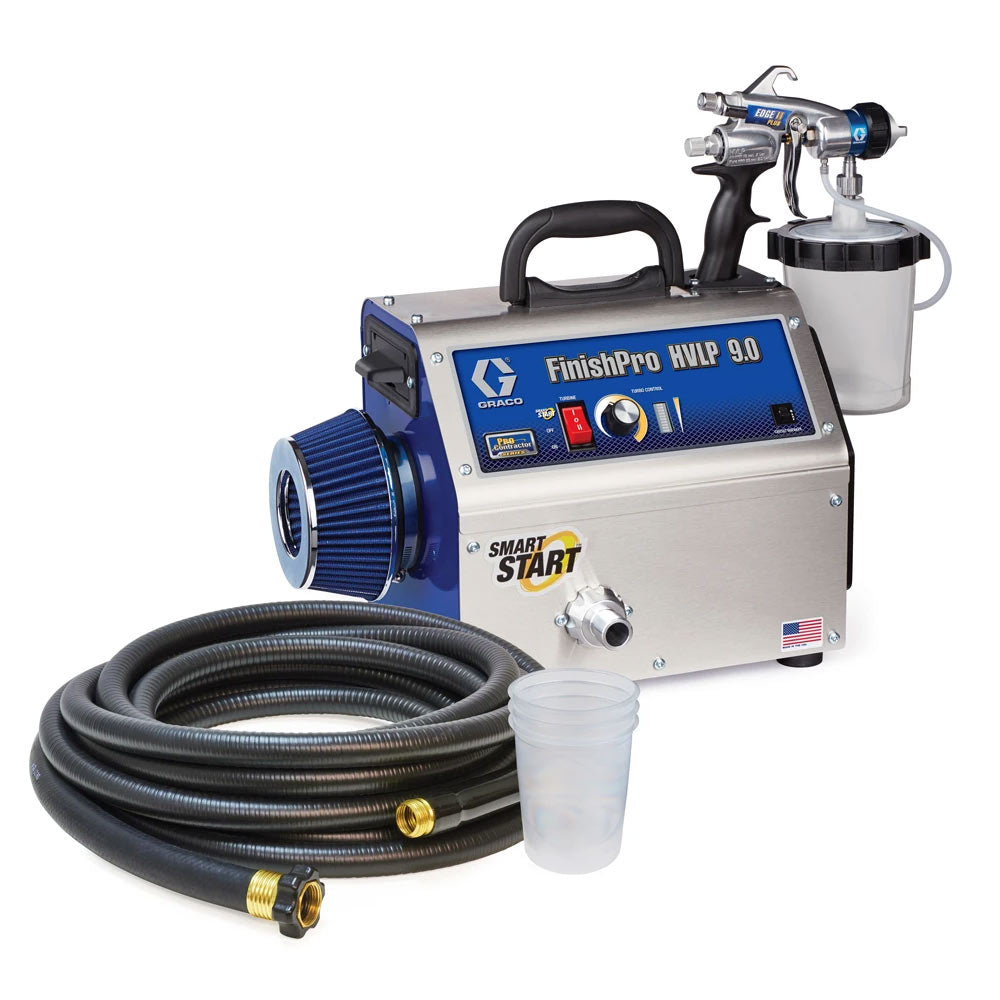

    FinishPro HVLP 9.0 ProContractor, includes:

    • EDGE II Plus Gun
    • 1 qt (1 l) Cup with FlexLiner
    • #3 & #4 Quick Release Fluid Sets
    • 30 ft (9 m) Super-Flex Air Hose

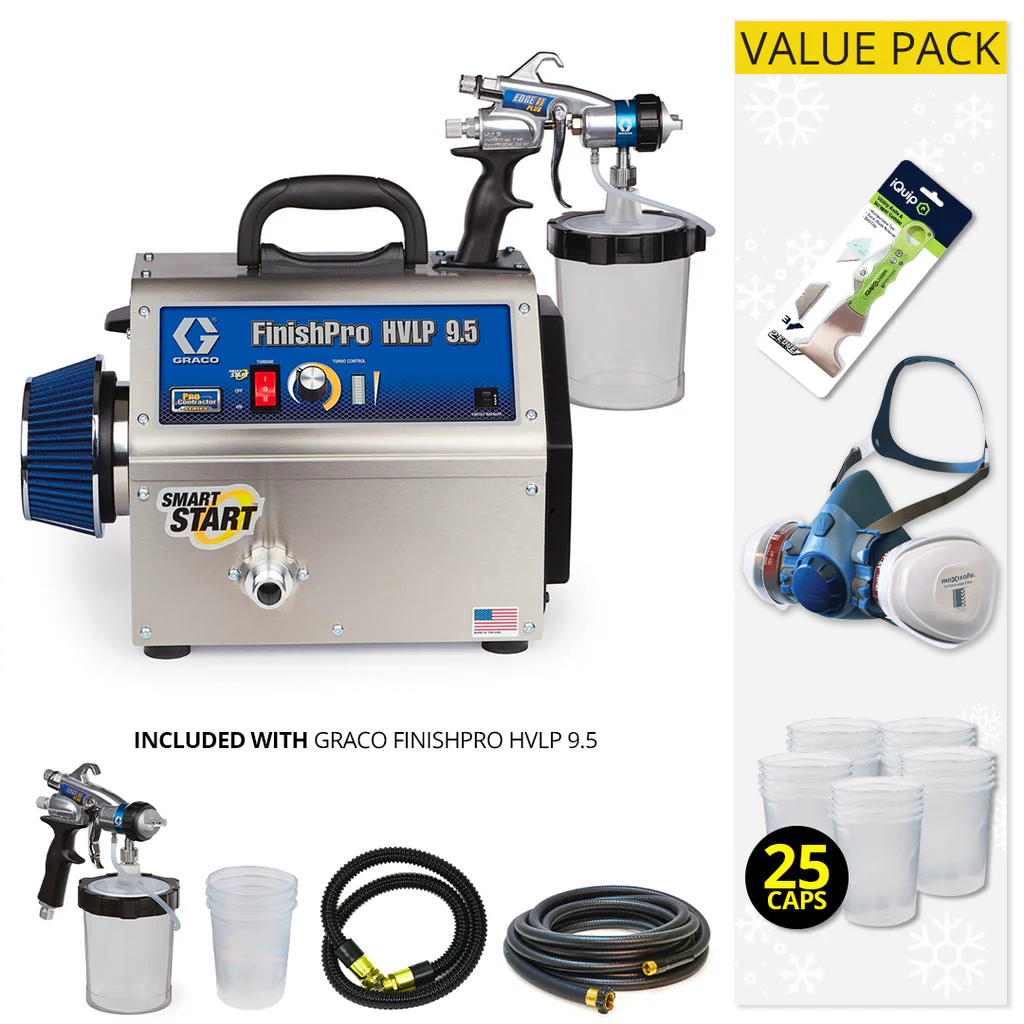

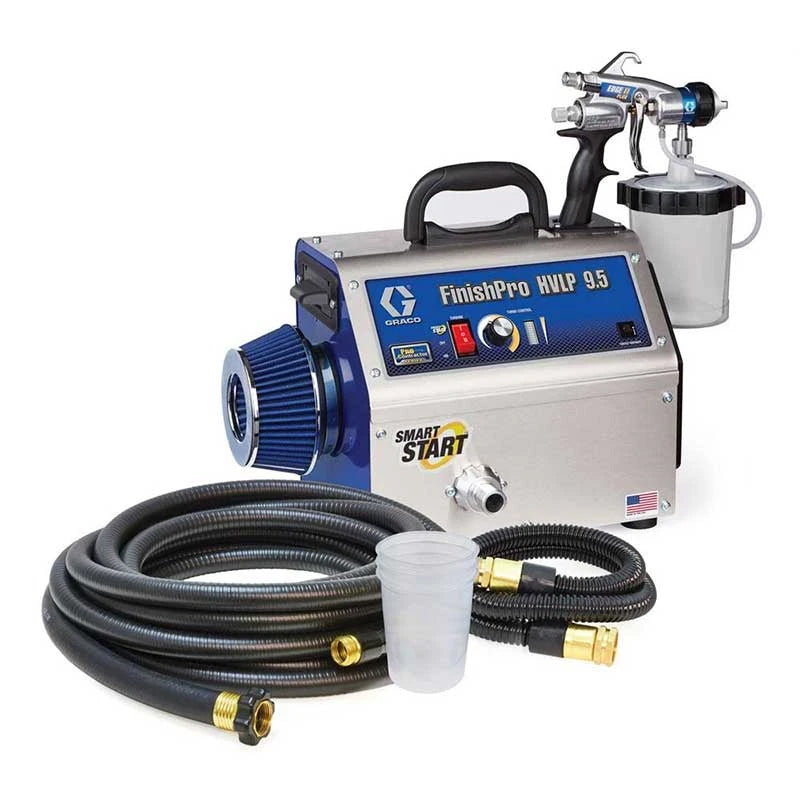

    FinishPro HVLP 9.5 ProContractor, includes:

    • EDGE II Plus Gun
    • 1 qt (1 l) Cup with FlexLiner
    • #3, #4 & #5 Quick Release Fluid Sets
    • 30 ft (9 m) Super-Flex Air Hose
    • 4 ft (1.2 m) Whip Hose

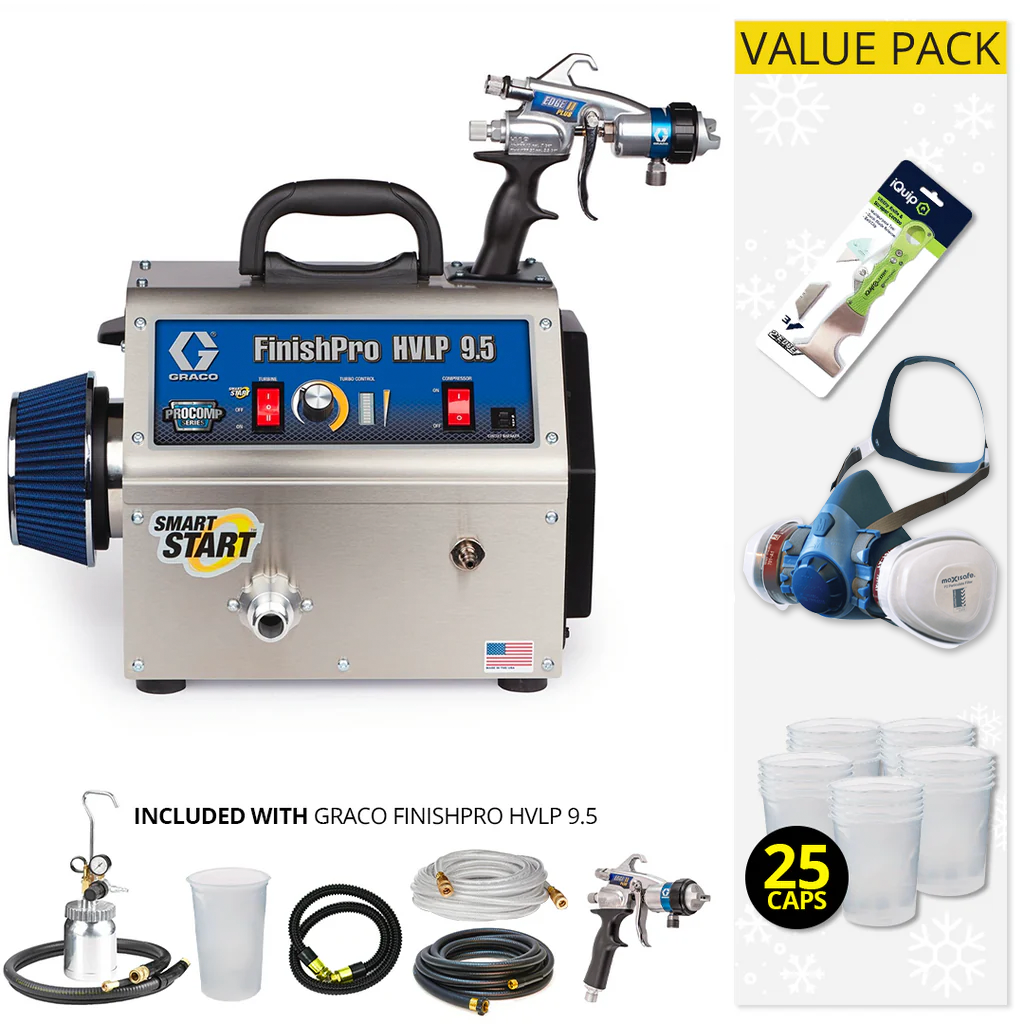

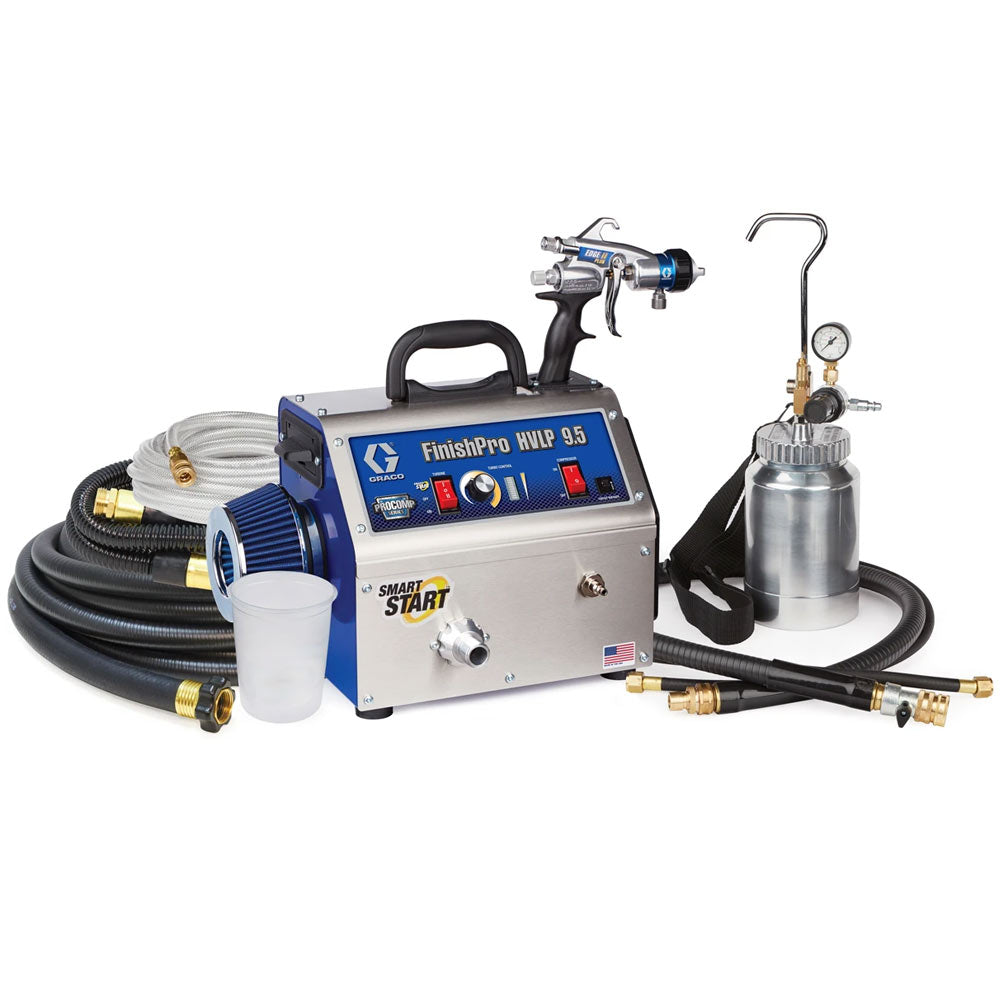

    FinishPro HVLP 9.5 ProComp, includes:

    • EDGE II PLUS Gun
    • 2 qt (1.9 l) Remote Cup and Shoulder Strap, 5 ft (1.5 m) material and air hose, FlexLiner Conversion Kit
    • #3, #4, & #5 Quick Release Fluid Sets
    • 30 ft (9 m) Super-Flex Air Hose
    • 4 ft (1.2 m) Whip Hose

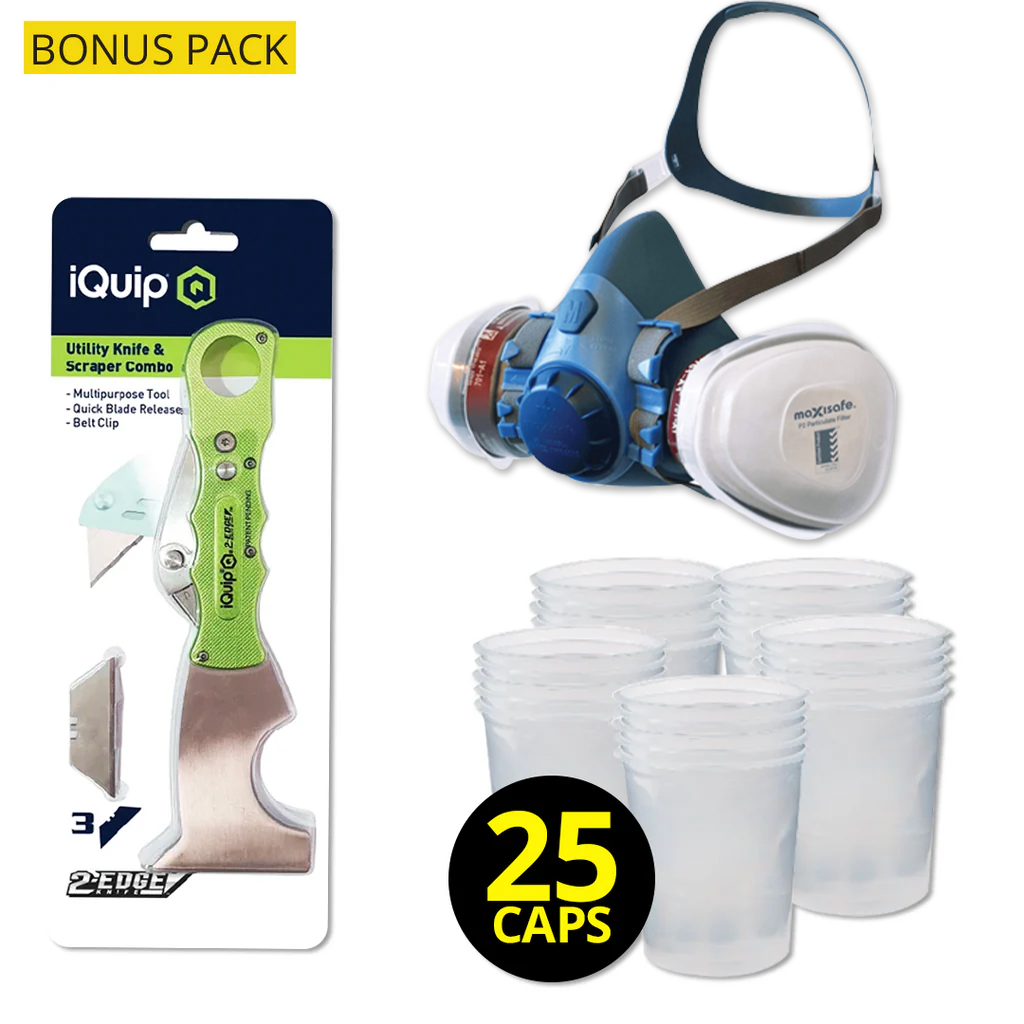

    Bonus includes:

    • Maxisafe MaxiGuard Half Mask Silicone Painters Kit - SKU: R7500PK-M

    • Zorr 2-Edge Utility Knife & Scraper Combo - SKU: 22ZH412

    • Graco FlexLiner Bags (32 oz 946ml) - 25-pack - SKU: 17P212
